S3(nh) Thick-walled halogen-free heat shrinkable tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | |||
| Thick-walled heat-shrinkable tube, semi-hard cross-linked polyolefin material, single-wall or double-wall tape is optional. Excellent electrical insulation, sealing and mechanical protection properties. It is suitable for the insulation, sealing and mechanical protection of the outer sheath of the cable connection. | |||
| Features | |||
| Operating temperature: -55~110℃ | |||
| Minimum full shrinkage temperature: 125 ℃ | |||
| Single wall or double wall with glue optional | |||
| Halogen-free environmental protection | |||
| High strength, resistance to mechanical damage | |||
| Shrink ratio: 3:1 & 4:1 | |||
| Color: black, other colors can be customized | |||
| Voltage level：1~36 kV |
| Technical Data | ||||
| Property | Test Method | Value | ||
| Tensile Strength | ASTM D2671 | ≥ 14 MPa | ||
| Breakdown elongation | ASTM D2671 | ≥ 400% | ||
| Aging (136℃/168hrs) Tensile Strength Breakdown elongation |
ASTM D 2671 | ≥ 12 MPa ≥ 350% |
||
| Water absorption(23℃/24hrs) | ASTM D 570 | ≤ 0.5% | ||
| Low temperature flexibility(-55℃/4hrs) | ASTM D 2671 | No cracks | ||
| Heat shock(200℃/4hrs) | ASTM D 2671 | No drips, no flow, no cracks | ||
| Dielectric strength | ASTM D 2671 | ≥ 15 kV/mm | ||
| Volume resistivity | ASTM D 2671 | ≥ 1×1014Ω.cm | ||
| Copper corrosion | ASTM D 2671 | No corrosion | ||

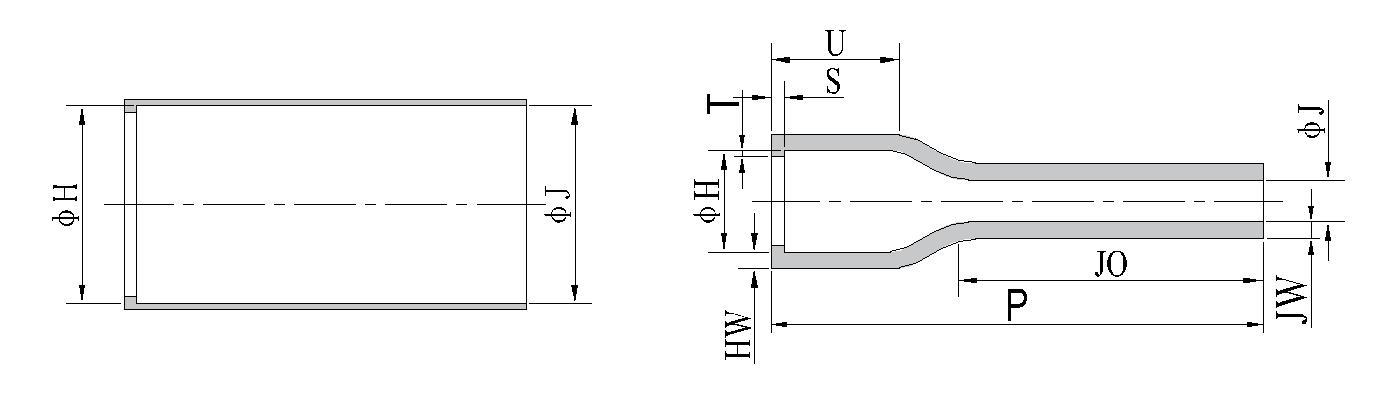

| Dimension | ||||
| Size | As supplied(mm) | After shrink(mm) | Supplied length | |
| S3(nh) | Diameter(Min.) | Diameter(Max.) | W T(nomal) | m/pc |
| 9/3 | 9 | 3 | 2.5（含胶） | 1.0/1.22 |
| 13/4 | 12 | 4 | 2.8（含胶） | 1.0/1.22 |
| 16/5 | 16 | 5 | 3.0（含胶） | 1.0/1.22 |
| 19/6 | 19 | 6 | 2.6 | 1.0/1.22 |
| 22/6 | 22 | 6 | 2.6 | 1.0/1.22 |
| 25/8 | 25 | 8 | 2.8 | 1.0/1.22 |
| 28/6 | 28 | 6 | 3.3 | 1.0/1.22 |
| 33/8 | 33 | 8 | 3.3 | 1.0/1.22 |
| 35/12 | 35 | 12 | 3.5 | 1.0/1.22 |
| 40/12 | 40 | 12 | 3.5 | 1.0/1.22 |
| 45/13 | 45 | 13 | 3.6 | 1.0/1.22 |
| 55/16 | 54 | 16 | 3.6 | 1.0/1.22 |
| 65/19 | 65 | 19 | 3.6 | 1.0/1.22 |
| 75/22 | 75 | 22 | 3.6 | 1.0/1.22 |
| 85/25 | 85 | 25 | 3.6 | 1.0/1.22 |
| 95/25 | 95 | 25 | 3.6 | 1.0/1.22 |
| 105/30 | 105 | 30 | 3.6 | 1.0/1.22 |
| 115/34 | 115 | 34 | 3.7 | 1.0/1.22 |
| 130/36 | 130 | 36 | 3.8 | 1.0/1.22 |
| 140/42 | 140 | 42 | 3.8 | 1.0/1.22 |
| 160/50 | 160 | 50 | 4.0 | 1.0/1.22 |
| 175/58 | 175 | 58 | 4.0 | 1.0/1.22 |
| 200/65 | 200 | 65 | 4.2 | 1.0/1.22 |
| 230/75 | 230 | 75 | 4.4 | 1.0/1.22 |
| 260/85 | 260 | 85 | 4.8 | 1.0/1.22 |
