C102-35 Stress control heat shrink tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | |||
| Electric stress control heat shrinkable tube, suitable for electric stress control protection of 36kV power cable terminal and intermediate connection. | |||
| Fearures | |||
| Operating temperature：-55~105℃ | |||
| Minimum full shrinkage temperature：125 ℃ | |||
| Voltage level：36 kV | |||
| Excellent electrical stress control performance | |||
| Shrink ratio：2.5:1 | |||
| Colour: Black |
| Technical Data | ||
| Property | Test method | Values |
| Tensile Strength | ASTM D 2671 | ≥12 MPa |
| Breakdown elongation | ASTM D 2671 | ≥300% |
| Aging(136℃/168hrs) Tensile Strength Breakdown elongation |
ASTM D 2671 | ≥ 10 MPa ≥ 250% |
| Water absorption(23℃/24hrs) | ASTM D 570 | ≤ 1.0% |
| Low temperature flexibility(-40℃/4hrs) | ASTM D 2671 | No cracks |
| Heat shock(200℃/4hrs) | ASTM D 2671 | No cracks |
| Volume resistivity | ASTM D 2671 | ≥ 1×109 Ω.cm |
| Dielectric constant | IEC 250 | 30~55 |
| Loss coefficient(50HZ) | IEC 250 | ≤ 1.0 (1000V) |

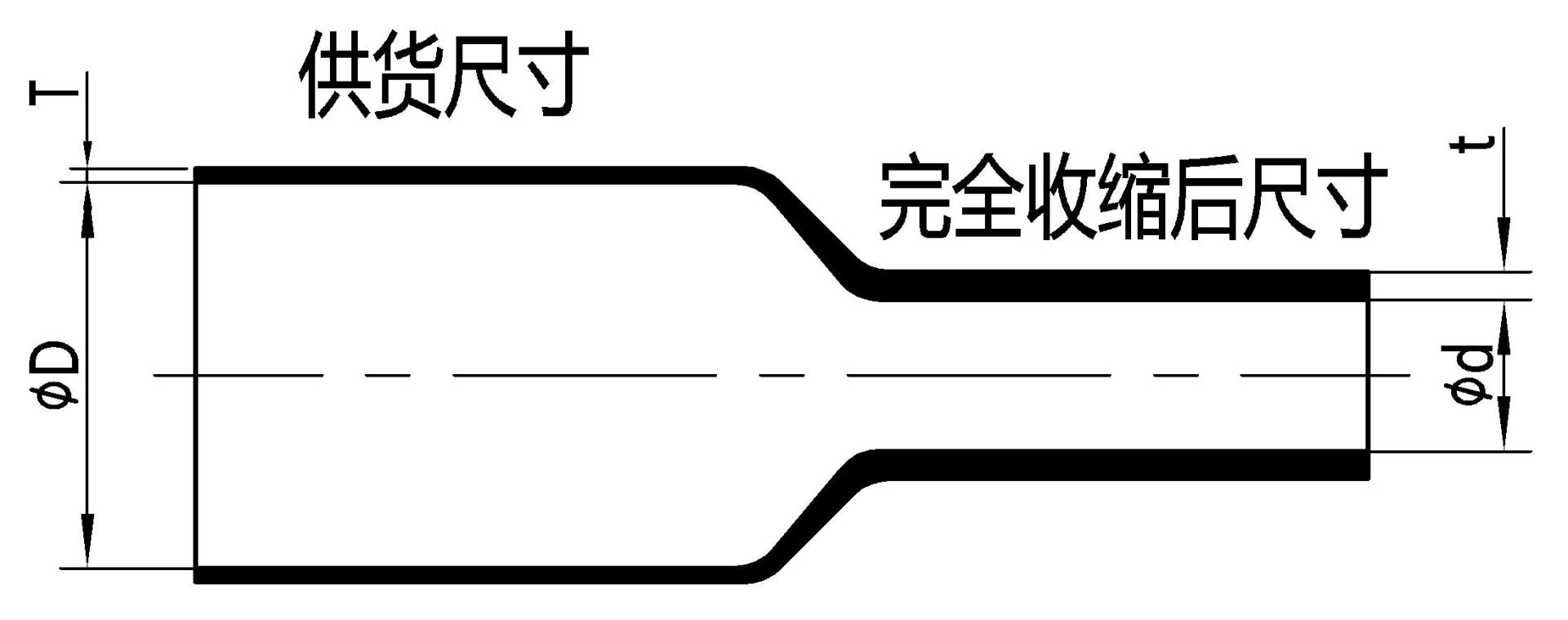

| Dimension | ||||
| Size | As supplied(mm) | After shrink(mm) | Standard Length | |
| C102-35 | Inner diameter（Min.） | Inner diameter（Max.） | Wall thickness（common） | m/pc |
| 26/10 | 26 | 10 | 2.7 | 1.0~1.5 |
| 30/12 | 30 | 12 | 2.8 | 1.0~1.5 |
| 35/14 | 35 | 14 | 2.9 | 1.0~1.5 |
| 40/16 | 40 | 16 | 3.0 | 1.0~1.5 |
| 47/18 | 47 | 18 | 3.0 | 1.0~1.5 |
| 55/21 | 55 | 21 | 3.1 | 1.0~1.5 |
| 65/24 | 65 | 24 | 3.2 | 1.0~1.5 |
| 85/30 | 85 | 30 | 3.4 | 1.0~1.5 |
| 95/45 | 95 | 45 | 3.2 | 1.0~1.5 |
