C107 Polyolefin/rubber insulated double-layer composite heat shrinkable tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | |||
| The two-layer composite heat-shrinkable tube is made by composite co-extrusion of thermoplastic insulating material and rubber elastomer insulating material. The rubber elastic body design, when heated, the shrinkage response is fast, avoiding overheating damage. It is suitable for insulation protection of the middle connection of power cables of 36kV and below. | |||
| Fearures | |||
| Operating temperature：-55~105℃ | |||
| Minimum full shrinkage temperature：150 ℃ | |||
| Voltage level：6~36 kV | |||
| Both layers are red insulating layers | |||
| Halogen-free and environmentally friendly, especially thick wall thickness | |||
| Color: red |
| Technical Data | |||
| Property | Test method | Values | |
| Outer layer (insulation layer, red) | |||
| Tensile Strength | ASTM D 2671 | ≥12 MPa | |
| Breakdown elongation | ASTM D 2671 | ≥350% | |
| Aging(136℃/168hrs) Tensile Strength Breakdown elongation |
ASTM D 2671 | ≥ 10 MPa ≥ 270% |
|
| Water absorption(23℃/24hrs) | ASTM D 570 | ≤ 0.5% | |
| Low temperature flexibility(-40℃/4hrs) | ASTM D 2671 | No cracks | |
| Heat shock(200℃/4hrs) | ASTM D 2671 | No dripping no flow | |
| Dielectric strength | ASTM D 2671 | ≥ 15 kV/mm | |
| Volume resistivity | ASTM D 2671 | ≥ 1×1013 Ω.cm | |
| Inner layer (insulation layer, red) | |||
| Tensile Strength | ASTM D2671 | ≥6 MPa | |
| Breakdown elongation | ASTM D 2671 | ≥270% | |
| Aging(136℃/168hrs) Tensile Strength Breakdown elongation |
ASTM D 2671 | ≥ 4.2 MPa ≥ 200% |
|
| Water absorption(23℃/24hrs) | ASTM D 570 | ≤ 0.5% | |
| Low temperature flexibility(-40℃/4hrs) | ASTM D 2671 | No cracks | |
| Heat shock(200℃/4hrs) | ASTM D 2671 | No dripping no flow | |
| Dielectric strength | ASTM D 2671 | ≥ 15 kV/mm | |
| Volume resistivity | ASTM D 2671 | ≥ 1×1013 Ω.cm | |
| Note: Use standard sample test | |||

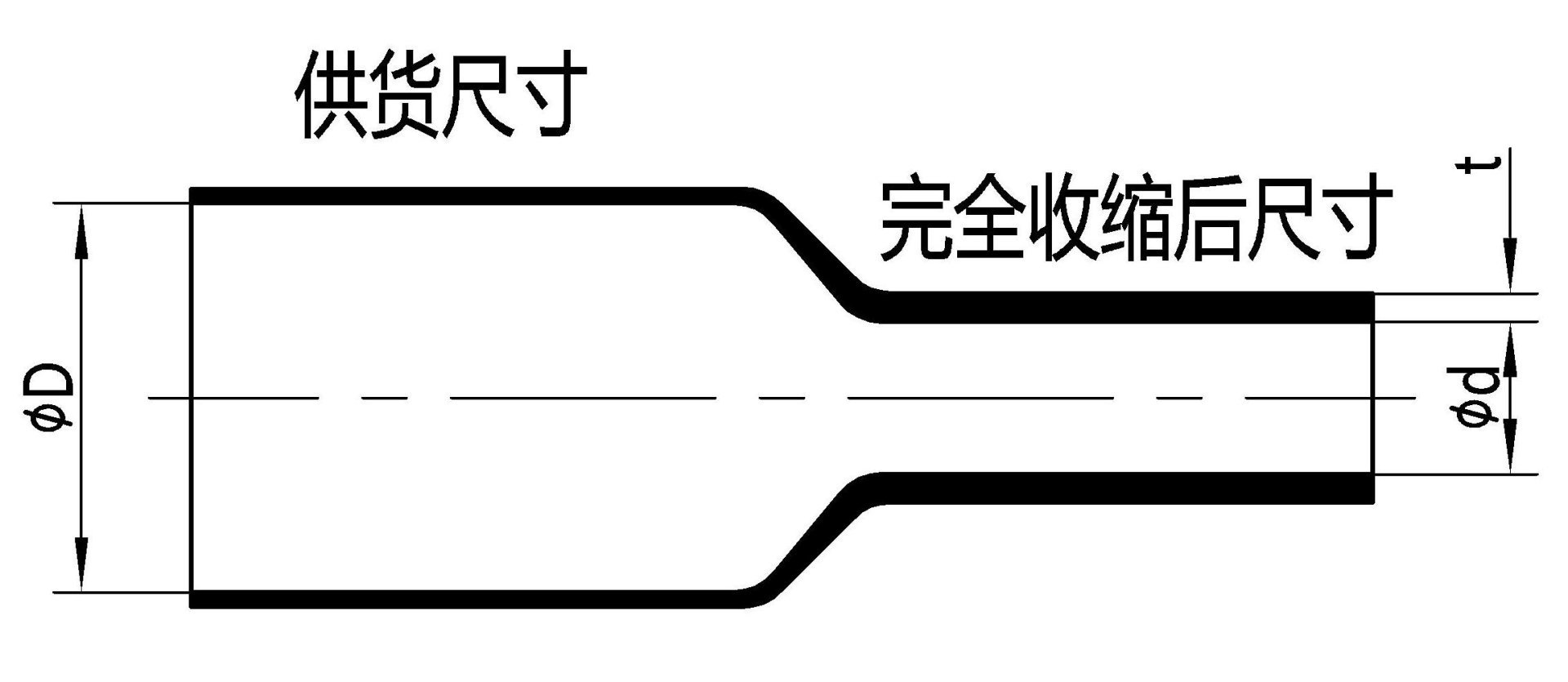

| Dimension | ||||
| Size | As supplied(mm) | After shrink(mm) | Standard Length | |
| C107 | Inner diameter（Min.） | Inner diameter（Max.） | Wall thickness（common） | m/pc |
| 35/13 | 35 | 13 | 11.0 | ≤ 1.22 |
| 45/17 | 45 | 17 | 12.0 | ≤ 1.22 |
| 50/21 | 50 | 21 | 12.0 | ≤ 1.22 |
| 63/26 | 63 | 26 | 12.5 | ≤ 1.22 |
| 75/34 | 75 | 34 | 12.5 | ≤ 1.22 |
| 85/34 | 85 | 34 | 12.5 | ≤ 1.22 |
| 95/42 | 95 | 42 | 13.5 | ≤ 1.22 |
| 110/52 | 110 | 52 | 14.0 | ≤ 1.22 |
| 125/62 | 125 | 62 | 14.0 | ≤ 1.22 |
