C1 0.6/1kV Heat shrink cable accessories
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | |||
| Single-core, two-core, three-core, four-core, five-core and six-core heat-shrinkable power cable accessories, suitable for indoor/outdoor power cable terminals and intermediate joints with a voltage level of 0.6/1kV. | |||
| Fearures | |||
| Voltage level: 0.6/1 kV | |||
| Operating temperature: -55~105 ℃ | |||
| Weather resistance, damage resistance, long operating life | |||
| Complete set of accessories |
| Technical Data | ||
| Property | Test method | Values |
| Power frequency withstand voltage | 4 kV/1m | No breakdown, no flashover |
| Heat and cold cycle (3 times) | 5h heating* 3h cooling |
2.4kV/4h No breakdown, no flashover |
| Power frequency withstand voltage | 2.4kV/4h | No breakdown, no flashover |
| Note: *Conductor temperature 75℃ during heating |

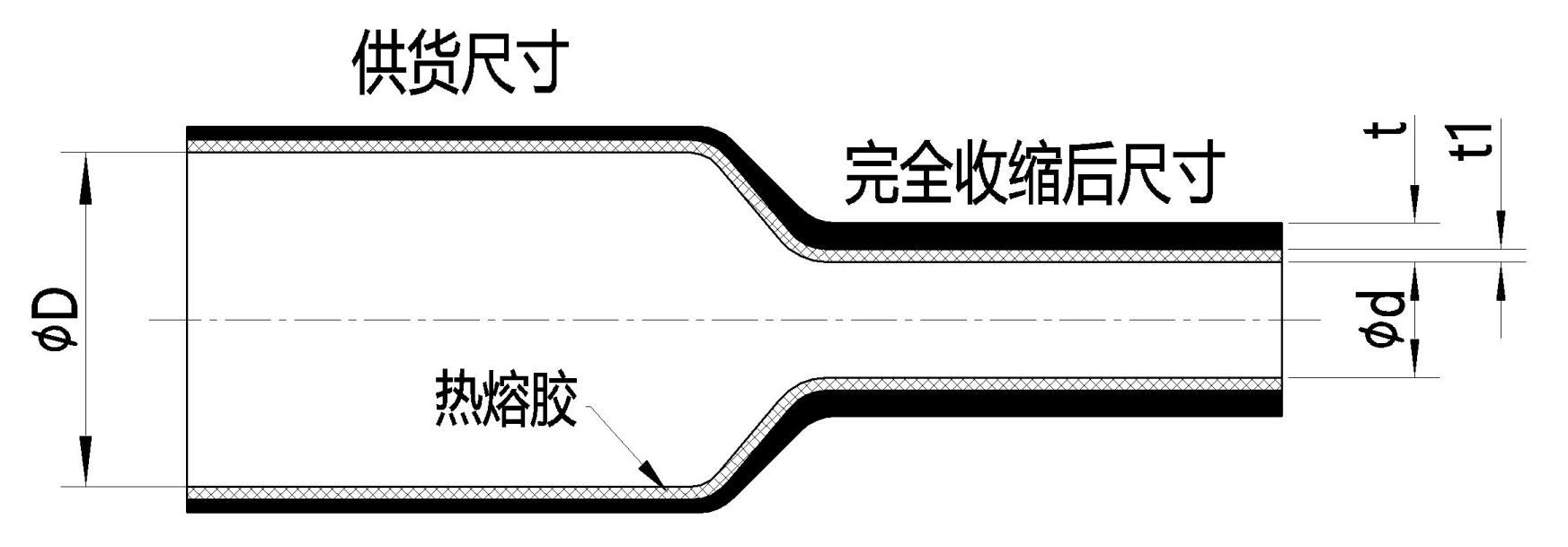

| Dimension | ||||
| Cable termination | Cable joint | Cable size | ||
| Size UPM C1 |
Cable core number | Size UPM C1 |
Cable core number | mm2 |
| NSY-1100 | 1 | JSY-1100 | 1 | 4-6 |
| NSY-110 | 1 | JSY-110 | 1 | 10-16 |
| NSY-111 | 1 | JSY-111 | 1 | 25-50 |
| NSY-112 | 1 | JSY-112 | 1 | 70-120 |
| NSY-113 | 1 | JSY-113 | 1 | 150-240 |
| NSY-114 | 1 | JSY-114 | 1 | 300-400 |
| NSY-1200 | 2 | JSY-1200 | 2 | 4-6 |
| NSY-120 | 2 | JSY-120 | 2 | 10-16 |
| NSY-121 | 2 | JSY-121 | 2 | 25-50 |
| NSY-122 | 2 | JSY-122 | 2 | 70-120 |
| NSY-123 | 2 | JSY-123 | 2 | 150-240 |
| NSY-124 | 2 | JSY-124 | 2 | 300-400 |
| NSY-1300 | 3 | JSY-1300 | 3 | 4-6 |
| NSY-130 | 3 | JSY-130 | 3 | 10-16 |
| NSY-131 | 3 | JSY-131 | 3 | 25-50 |
| NSY-132 | 3 | JSY-132 | 3 | 70-120 |
| NSY-133 | 3 | JSY-133 | 3 | 150-240 |
| NSY-134 | 3 | JSY-134 | 3 | 300-400 |
| NSY-1400 | 4 | JSY-1400 | 4 | 4-6 |
| NSY-140 | 4 | JSY-140 | 4 | 10-16 |
| NSY-141 | 4 | JSY-141 | 4 | 25-50 |
| NSY-142 | 4 | JSY-142 | 4 | 70-120 |
| NSY-143 | 4 | JSY-143 | 4 | 150-240 |
| NSY-144 | 4 | JSY-144 | 4 | 300-400 |
| NSY-1500 | 5 | JSY-1500 | 5 | 4-6 |
| NSY-150 | 5 | JSY-150 | 5 | 10-16 |
| NSY-151 | 5 | JSY-151 | 5 | 25-50 |
| NSY-152 | 5 | JSY-152 | 5 | 70-120 |
| NSY-153 | 5 | JSY-153 | 5 | 150-240 |
| NSY-154 | 5 | JSY-154 | 5 | 300-400 |
| NSY-160 | 6 | JSY-160 | 6 | 10-16 |
| NSY-161 | 6 | JSY-161 | 6 | 25-50 |
| NSY-162 | 6 | JSY-162 | 6 | 70-120 |
| NSY-163 | 6 | JSY-163 | 6 | 150-240 |
| NSY-164 | 6 | JSY-164 | 6 | 300-400 |
Keyword:
C1 0.6/1kV Heat shrink cable accessories
