GM-H Super thick tube bus insulation heat shrinkable tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||
| Semi-rigid polyolefin material, radiation cross-linked insulation heat-shrinkable material, special thick wall thickness design, single-layer sheath to achieve sufficient insulation strength, suitable for 6~36kV voltage tubular bus. | ||||
| Features | ||||
| Operating temperature: -40~105 ℃ | ||||
| Voltage level: 6~36kV | ||||
| Halogen-free and environmentally friendly, RoHS compliant | ||||
| Minimum full shrinkage temperature: 160 ℃ | ||||
| Shrink ratio: 1.5:1 | ||||
| Standard color: red |
| Technical Data | ||||
| Property | Test method | Values | ||
| Tensile Strength | ASTM D2671 | ≥14 MPa | ||
| Breakdown elongation | ASTM D2671 | ≥400% | ||
| Aging(136℃/168h) Tensile Strength Breakdown elongation |
ASTM D2671 | ≥10.8 MPa ≥300% |
||
| Water absorption (23℃/24h) | ASTM D570 | ≤0.5% | ||
| Low temperature flexibility (-40℃/4h) | ASTM D2671 | No cracks | ||
| Heat shock(200℃/4h) | ASTM D2671 | No drips, no flow, no cracks | ||
| Dielectric strength | ASTM D2671 | ≥16 kV/mm（≤3mm样片） | ||
| Volume resistivity | ASTM D2671 | ≥1.0×1013 Ω·cm |

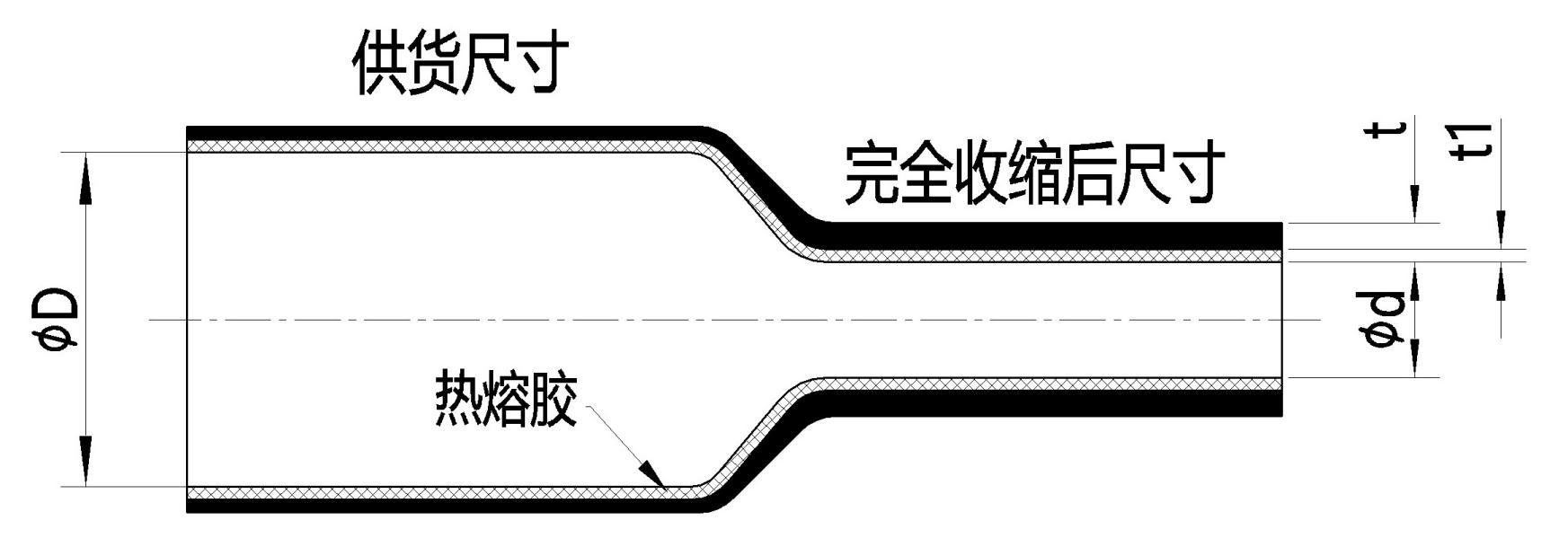

| Dimesion | ||||
| Size | As supplied(mm) | After shrink (mm) | Standard length | |
| GM-H | Inner diameter（Min.） | Inner diameter（Max.） | Wall thickness（common） | m/roll |
| 60/40 | 60 | 40 | 23.0 | ≤1.2 |
| 70/45 | 70 | 45 | 18.0 | ≤1.2 |
Keyword:
GM-H Super thick tube bus insulation heat shrinkable tube
