WR-01SR Solder ring waterproof heat shrinkable end cap
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Heat Shrink Terminal Products
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||||||
| It is composed of a colored glass bead, a square copper wire tower, a solder ring, a hot-melt rubber ring and a heat-shrinkable tube, which is used for the sealing connection of the end of the multi-strand wire. It integrates the functions of insulation and waterproofing, wire clamp fixing and soldering of multi-strand wire ends. Waterproof, oil resistant, environmentally friendly and easy to install. | ||||||||
| Features | ||||||||
| Operating temperature: -40~125 ℃ | ||||||||
| Solder melting temperature：115℃ | ||||||||
| Complete melting temperature of solder：150℃ | ||||||||
| Shrink ratio: 2:1 | ||||||||
| Voltage level：600V |
| Technical Data | ||||||||
| Property | Test Method | Value | ||||||
| Voltage level：600V | - | 600V | ||||||
| waterproof level | - | IP67 | ||||||
| Dielectric strength | ASTM D2671 | ≥2.0kV/mm | ||||||
| Volume resistivity | ASTM D2671 | ≥1.0×1013Ω·cm | ||||||
| Dimension | ||||||||
| Part Number | Color of glass beads | Size(mm) | Copper section | Wire harness diameter(mm) | ||||
| L±3.5 | A | B | Min(CMA) | Max(CMA) | D max | M±1(M±0.4) | ||
| WR-01SR-01 | Green | 38.3 | 3.6+0.4/-0.2 | 26.0±2.0 | 0.7(1400) | 2.4(4800) | 3.3 | 15.0 |
| WR-01SR-02 | Red | 37.7 | 5.0+0.7/-0.2 | 23.5±2.0 | 2.0(4000) | 4.0(8000) | 4.5 | 15.0 |
| WR-01SR-03 | Blue | 45.5 | 7.5+0.9/-0.2 | 26.5±2.0 | 3.5(7000) | 8.0(16000) | 7 | 15.0 |
| WR-01SR-04 | Yellow | 45.0 | 9.4+0.9/-0.3 | 25.5±2.0 | 7.5(15000) | 12.0(24000) | 9 | 15.0 |

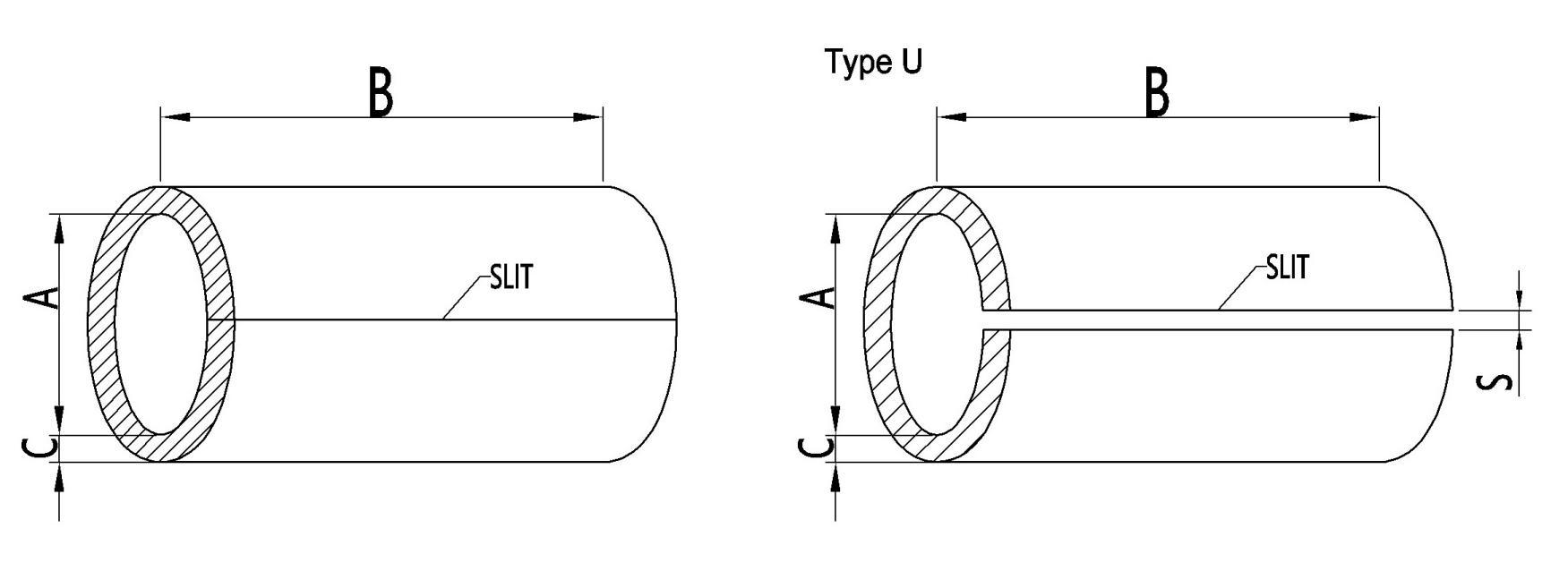

Product diagram
