S9 Silicone rubber heat shrinkable tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Other heat shrink products
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||||
| Cross-linked silicone rubber material, good flexibility, high temperature resistance, low temperature resistance, solvent resistance, flame retardant, suitable for thermal insulation and protection of medical instruments that need disinfection treatment, insulation protection of heating components and wire and cable terminals, optical fiber bundles Sheath, special cable protection for aviation and rocket, etc. | ||||||
| Features | ||||||
| Operating temperature：-50℃~200℃ | ||||||
| Minimum full shrinkage temperature：150℃ | ||||||
| Shrink ratio：1.7:1 | ||||||
| Voltage level：1kV | ||||||
| Color: gray, red | ||||||
| 包装：连续卷状或≤1.5m根 |
| Technical Data | ||||||
| Property | Test Method | Value | ||||
| Tensile strength | ASTM D2671 | ≥ 6.9MPa | ||||
| Breakdown elongation | ASTM D2671 | ≥ 300% | ||||
| Dielectric strength | ASTM D2671 | ≥ 18kV/mm | ||||
| Volume resistivity | ASTM D2671 | ≥ 1.0×1014 Ω·cm | ||||
| Dielectric constant(50Hz) | ASTM D2671 | ≤ 5 | ||||
| Flame retardant | ASTM D2671 | Self-extinguishing within 60S | ||||
| Axial change rate | ASTM D2671 | ≥ 40% | ||||

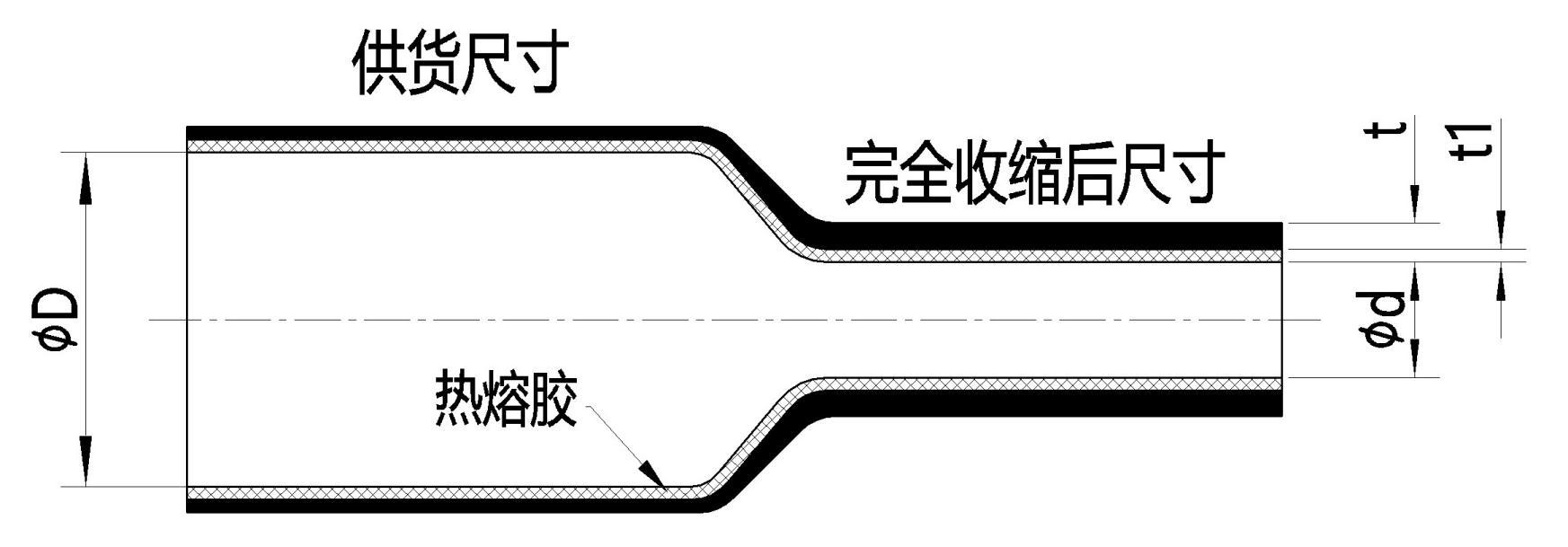

| Dimension | ||||||
| Size | Before shrink(mm) | After shrink (mm) | ||||
| Inner diameter(≥) | Thin wall type (reference) | Thick wall type (reference) | Inner diameter(≥) | Thin wall type (reference) | Thick wall type (reference) | |
| 0.8 | 0.8 | 0.5 | 0.8 | 0.5 | 0.7 | 1.1 |
| 1.0 | 1.0 | 0.5 | 0.8 | 0.6 | 0.7 | 1.1 |
| 1.5 | 1.5 | 0.5 | 0.8 | 0.8 | 0.7 | 1.1 |
| 2.0 | 2.0 | 0.5 | 0.8 | 1.2 | 0.7 | 1.1 |
| 2.5 | 2.5 | 0.5 | 0.8 | 1.5 | 0.7 | 1.1 |
| 3.0 | 3.0 | 0.5 | 0.8 | 1.8 | 0.7 | 1.1 |
| 3.5 | 3.5 | 0.5 | 0.8 | 2.0 | 0.7 | 1.1 |
| 4.0 | 4.0 | 0.5 | 0.8 | 2.5 | 0.7 | 1.1 |
| 4.5 | 4.5 | 0.5 | 0.8 | 2.8 | 0.7 | 1.1 |
| 5.0 | 5.0 | 0.5 | 0.8 | 3.0 | 0.7 | 1.1 |
| 5.5 | 5.5 | 0.5 | 0.8 | 3.3 | 0.7 | 1.1 |
| 6.0 | 6.0 | 0.5 | 0.8 | 3.5 | 0.7 | 1.1 |
| 6.5 | 6.5 | 0.5 | 0.8 | 3.8 | 0.7 | 1.1 |
| 7.0 | 7.0 | 0.5 | 0.8 | 4.0 | 0.7 | 1.1 |
| 8.0 | 8.0 | 0.5 | 0.8 | 4.8 | 0.7 | 1.1 |
| 9.0 | 9.0 | 0.5 | 0.8 | 5.0 | 0.7 | 1.1 |
| 10 | 10 | 1.0 | 1.5 | 5.8 | 1.7 | 2.5 |
| 12 | 12 | 1.0 | 1.5 | 7.0 | 1.7 | 2.5 |
| 15 | 15 | 1.0 | 1.5 | 9.0 | 1.7 | 2.5 |
| 16 | 16 | 1.0 | 1.5 | 9.4 | 1.7 | 2.5 |
| 18 | 18 | 1.0 | 1.5 | 10 | 1.7 | 2.5 |
| 20 | 20 | 1.0 | 1.5 | 12 | 1.7 | 2.5 |
| 35 | 35 | 1.0 | 1.5 | 20 | 1.7 | 2.5 |
| 40 | 38 | 1.0 | 1.5 | 25 | 1.7 | 2.5 |
| 50 | 47 | 1.0 | 1.5 | 30 | 1.7 | 2.5 |
| Unmarked size unit is mm | ||||||
