Y9 Cabinet connection molded sealing heat shrinkable parts
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Other heat shrink products
Quantity
-
+
Stock:
0
1
Detail
Size specification
Introduction | ||||
It is suitable for the fields where the cable penetrates into the casing and needs to be waterproof and moisture-proof, such as switch cabinets, junction boxes, etc., and is used in environments where pressure gradients and temperature gradients change periodically. |
Features | ||||||
The product contains 3 components: hard plastic nut, elastic O-ring, heat shrinkable molded part | ||||||
The inner support of the hard plastic nut can effectively prevent the cable from being worn or scratched when it penetrates into the case | ||||||
The elastic O-ring is at the entrance of the casing, which plays a role of waterproof and moisture-proof | ||||||
Heat-shrinkable molded parts, the inner wall is pre-coated with hot melt glue. After shrinking, the cable is covered to prevent water and moisture | ||||||
Colour: Black |

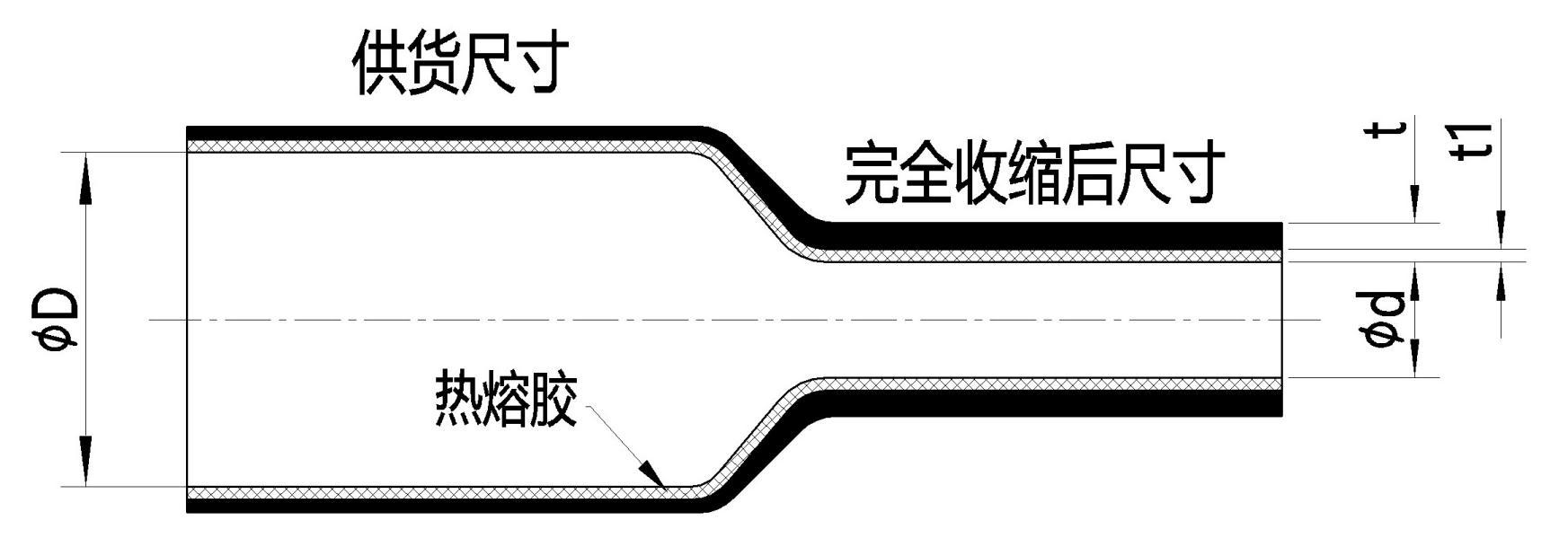

Dimension | ||||||
Size | Cable outer diameter (min.~max.) | Injection part length | caliber | |||
Metric(mm) | Inch | Metric(mm) | Inch | Metric(mm) | Inch | |
Y9-1 | 20-37 | 0.80-1.45 | 114 | 4.5 | 51 | 2 |
Y9-2 | 37-61 | 1.45-2.40 | 178 | 7.0 | 89 | 3.5 |
Unmarked size unit is mm |
Keyword:
Y9 Cabinet connection molded sealing heat shrinkable parts
