R1 Zipper type heat shrinkable cable repair sleeve
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Other heat shrink products
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||
| The outer layer is radiation cross-linked semi-hard polyolefin material, and the inner wall is attached with hot melt adhesive, which plays a waterproof and sealing role. It is suitable for quickly repairing damaged power cable sheath, sealing, insulating and protecting irregular power products. Environmentally friendly, wear-resistant and corrosion-resistant. The metal clip design ensures that the repair piece is closed and does not come off. | ||
| Features | ||
| Operating temperature：-25℃~90℃ | ||
| Minimum full shrinkage temperature：135℃ | ||
| Colour: Black | ||
| Length: can be customized, generally ≤1.5m |
| Technical Data | ||
| Property | Test Method | Value |
| Tensile strength | ASTM D2671 | ≥ 14 MPa |
| Breakdown elongation | ASTM D2671 | ≥ 300% |
| Aging (150℃/168h) Tensile strength Breakdown elongation |
ASTM D2671 |
≥ 12 MPa ≥ 300% |
| Low temperature flexibility(-25℃/4h) | ASTM D2671 | No cracks |
| Heat shock(200℃/4h) | ASTM D2671 | No drips, no flow, no cracks |
| Water absorption | ASTM D570 | ≤ 0.5% |
| Dielectric strength | ASTM D2671 | 15kV/mm |
| Volume resistivity | ASTM D257 | ≥ 1.0×1013 Ω·cm |
| Dielectric constant | IEC250 | ≤ 5.0 |
| Fungus resistant | ASTM G21 | Does not grow |

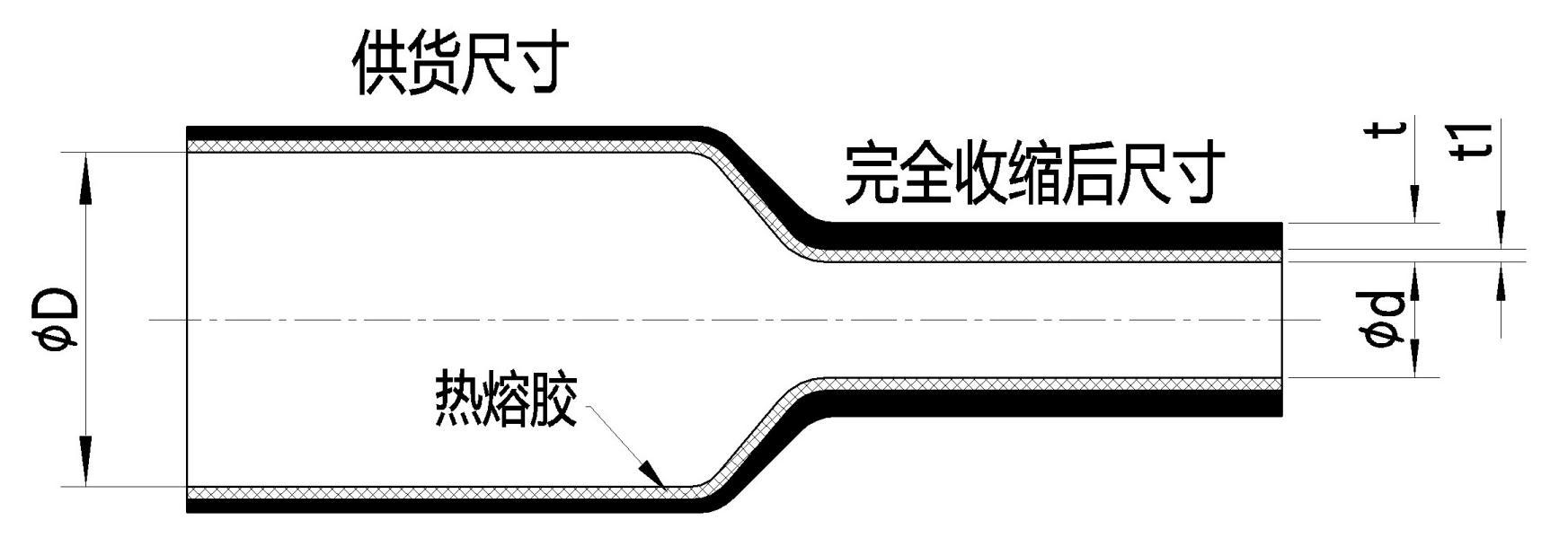

| Dimension | ||
| Size | Max. application diameter(mm) | Min.m application diameter(mm) |
| R1-34/8 | 25 | 9 |
| R1-42/10 | 32 | 12 |
| R1-53/13 | 40 | 15 |
| R1-62/22 | 47 | 25 |
| R1-75/20 | 56 | 23 |
| R1-85/25 | 65 | 30 |
| R1-93/25 | 70 | 30 |
| R1-105/30 | 80 | 35 |
| R1-122/30 | 92 | 35 |
| R1-135/34 | 102 | 40 |
| R1-146/38 | 110 | 44 |
| R1-164/42 | 123 | 48 |
| R1-175/50 | 132 | 58 |
| R1-200/55 | 150 | 63 |
| R1-210/65 | 160 | 75 |
| R1-230/80 | 175 | 92 |
| R1-260/100 | 195 | 115 |
Keyword:
R1 Zipper type heat shrinkable cable repair sleeve
