A2 Protective heat shrink tube with air groove for water or rubber pipe
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||
| The cross-linked polyolefin heat-shrinkable tube has a zigzag-like unevenness on the inner wall in the radial direction, which acts as an air guide to avoid bulging and wrinkles caused by holding the heat when the heat-shrinkable tube shrinks on the curved rubber hose. By covering the outer surface of the automobile rubber water pipe with heat shrinkable tubing, it can effectively avoid the friction between the automobile rubber water pipe and other parts of the automobile. At the same time, it can also prevent the automobile rubber water pipe from colliding with the stones and gravel on the road surface to cause abrasion, so as to protect the automobile pipeline. To extend its service life. | ||||
| Features | ||||
| Operating temperature: -40~125 ℃ | ||||
| Minimum full shrinkage temperature: 125 ℃ | ||||
| Shrink ratio: 3:1 & 2:1 | ||||
| Halogen-free environmental protection,RoHS、ELVcompliant | ||||
| Tooth shape on the inner wall to avoid suffocation and wrinkles during application | ||||
| Color: black |
| Technical Data | ||||
| Property | Test Method | Value | ||
| Density | ASTM D2671 | 1.05~1.15g/cm3 | ||
| Tensile strength | ASTM D2671 | ≥14MPa | ||
| Breakdown elongation | ASTM D2671 | ≥350% | ||
| After aging (158℃/168h) Tensile strength Breakdown elongation |
ASTM D2671 | ≥10MPa ≥280% |
||
| Water absorption (23℃/24h) | ASTM D570 | ≤0.5% | ||
| Low temperature flexibility (-40℃/4h) | ASTM D2671 | No cracks | ||
| Heat shock (225℃/4h) | ASTM D2671 | No drips, no flow, no cracks | ||
| Abrasion resistance | TL52668 Type C | ≥144,000 times | ||

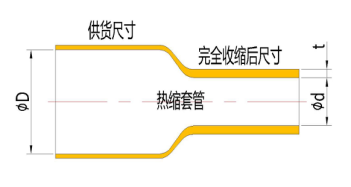

| Dimension | ||||
| Size | As supplied(mm) | After shrink (mm) | ||
| A2 | Diameter(Min.) | WT(reference) | Diameter(Max.) | WT |
| 18/6 | 19.0 | 0.35 | 8.0 | 1.1±0.2 |
| 27/9 | 27.0 | 0.35 | 9.5 | 1.1±0.2 |
| 39/13 | 39.0 | 0.35 | 14.0 | 1.2±0.2 |
| 51/17 | 52.0 | 0.35 | 21.0 | 1.3±0.2 |
| 60/20 | 62.0 | 0.35 | 22.0 | 1.3±0.2 |
| 76/38 | 77.0 | 0.55 | 38.0 | 1.5±0.2 |
| 100/35 | 102.0 | 0.40 | 35.0 | 1.5±0.2 |
Keyword:
A2 Protective heat shrink tube with air groove for water or rubber pipe
