A4 Automobile air-conditioning pipeline protection tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||
| Wear-resistant polyolefin material, suitable for anti-vibration and noise reduction protection of automobile air-conditioning pipelines. Special product design, attaches well to the air-conditioning pipe, no wrinkles when bending and forming. | ||||
| Features | ||||
| Operating temperature: -55~135 ℃ | ||||
| Minimum full shrinkage temperature: 125 ℃ | ||||
| Halogen-free environmental protection | ||||
| TL52668 standard Type C compliant | ||||
| Shrink ratio: 2:1、3:1 | ||||
| Color : black |
| Technical Data | ||||
| Property | Test Method | Value | ||
| Tensile strength | ASTM D2671 | ≥15 MPa | ||
| Breakdown elongation | ASTM D2671 | ≥400% | ||
| After aging (136℃/168h) Tensile strength Breakdown elongation |
ASTM D2671 | ≥12.0 MPa ≥300% |
||
| Low temperature flexibility (-40℃/4h) | ASTM D2671 | No cracks | ||
| Heat shock(200℃/4h) | ASTM D2671 | No drips, no flow, no cracks | ||
| Dielectric strength | ASTM D2671 | ≥20kV/mm | ||
| Volume resistivity | ASTM D2671 | ≥1×1014 Ω·cm | ||
| Abrasion resistance | TL 52668 Type C | ≥144,000 times | ||

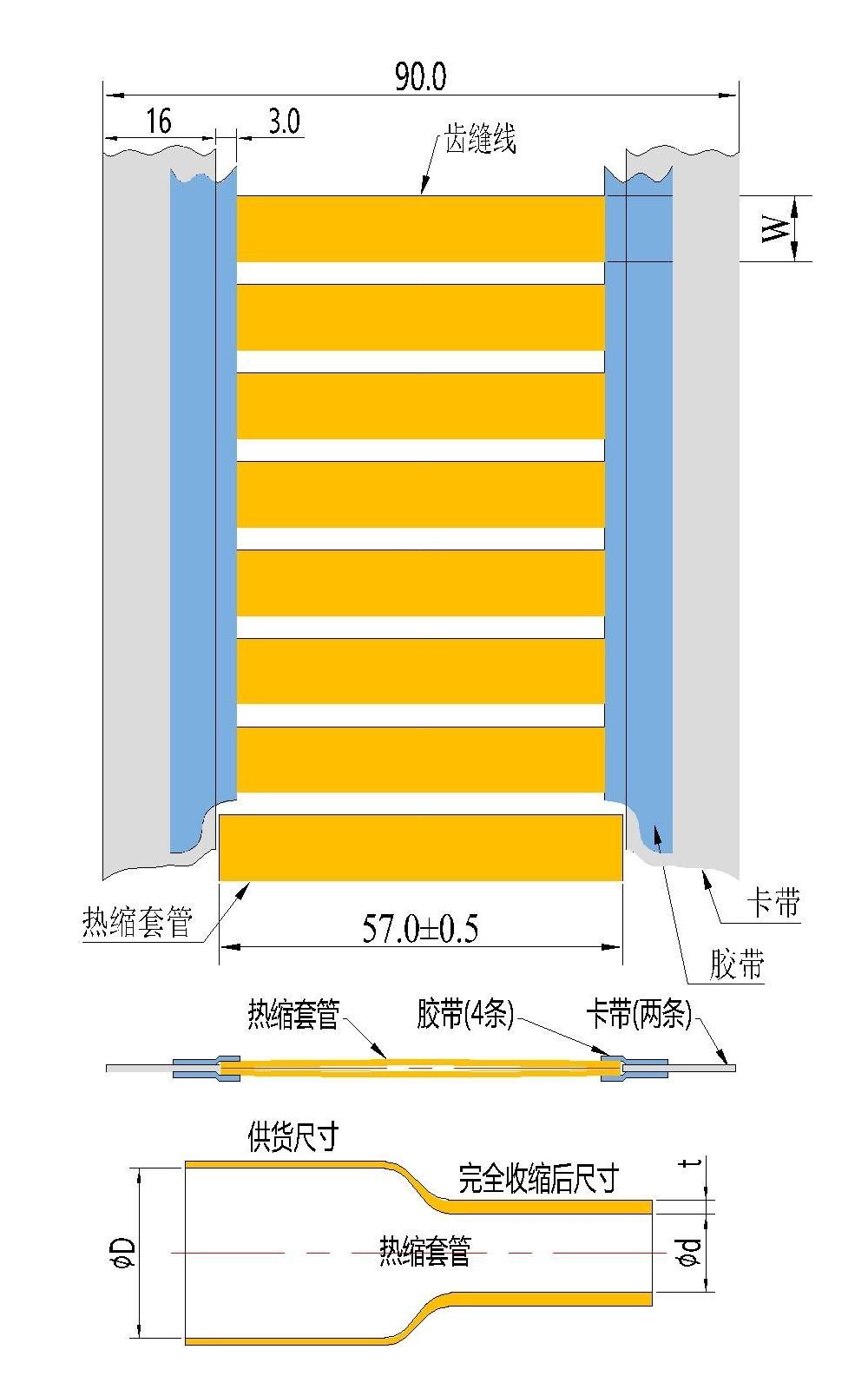

| Dimension | |||||
| Size | As supplied(mm) | After shrink(mm) | Standard length | ||
| Diameter（Min.） | WT（Nomal） | Diameter（Max.） | WT（Nomal） | m/roll | |
| 12/6 | 12.0 | 0.30 | 6.0 | 0.75 | 50 |
| 19/7.8 | 19.0 | 0.30 | 7.8 | 0.90 | 50 |
| 19/6 | 19.0 | 0.30 | 6.0 | 1.10 | 50 |
| 21/7.8 | 21.0 | 0.30 | 7.8 | 0.90 | 50 |
| 22/7.5 | 22.0 | 0.40 | 7.5 | 1.10 | 50 |
| 25.4/9.5 | 25.4 | 0.30 | 9.5 | 0.90 | 50 |
| 27/12.7 | 27.0 | 0.45 | 12.7 | 1.00 | 50 |
| 32/16 | 32.0 | 0.50 | 16.0 | 1.00 | 50 |
| 40/14 | 40.0 | 0.30 | 14.0 | 1.00 | 50 |
| 45/15 | 45.0 | 0.40 | 15.0 | 1.60 | 50 |
| 51/17 | 51.0 | 0.45 | 17.0 | 1.70 | 50 |
