S1-10 Flame Retardant Busbar Insulation Heat Shrinkable sleeve
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||
| The environmentally friendly flame retardant polyolefin material can be used in 6~24kV power switch cabinets to provide insulation enhancement and protection against flashover or accidental induced discharge. Particularly suitable for switch cabinets where space is limited, it can be used for round and rectangular copper or aluminum busbars. | ||||
| Features | ||||
| Operating temperature: -40~105 ℃ | ||||
| Voltage level: 6~24kV | ||||
| Halogen-free and environmentally friendly, RoHS compliant | ||||
| Minimum full shrinkage temperature: 125 ℃ | ||||
| Shrink ratio: 2:1，2.5:1 | ||||
| Standard Colors : Red, Yellow, Green |
| Technical Data | ||
| Property | Test Method | Value |
| Density | ASTM D2671 | 1.1~1.3 g/cm3 |
| Heat resistance | IEC 216 | ≥105 ℃ |
| Tensile Strength | ASTM D2671 | ≥10 MPa |
| Breakdown elongation | ASTM D2671 | ≥300% |
| Aging (136℃/168h) Tensile Strength Breakdown elongation |
ASTM D2671 | ≥8MPa ≥200% |
| Aging (100℃/3000h) Breakdown elongation |
IEC 60684-2 | ≥175% |
| After corrosion by special solvent(23℃/168h) Tensile Strength Breakdown elongation |
IEC 60684-2 | ≥8MPa ≥200% |
| Water absorption (23℃/336h) | ASTM D570 | ≤1.0% |
| Low temperature flexibility (-40℃/4h) | ASTM D2671 | No cracks |
| Heat shock (200℃/4h) | ASTM D2671 | No drips, no flow, no cracks |
| Dielectric strength | ASTM D2671 | ≥16 kV/mm |
| Volume resistivity | ASTM D2671 | ≥1.0×1013 Ω·cm |
| Anti-tracking | ASTM D2863 | Oxygen Index OI ≥27 |
| Color stability (resistance to sunlight/ultraviolet rays) | IEC 60684-3-283 | Stable color, no change |
| Copper corrosion(150℃/168h) | IEC 60684-3-283 | Pass |
| Dimension | ||||
| Size | As supplied(mm) | After shrink (mm) | Standard length | |
| S1-10 | Inner diameter（Min.） | Inner diameter（Max.） | Wall thickness (conventional) | m/roll |
| 25/10 | 25 | 10 | 2.50 | 25 |
| 30/12 | 30 | 12 | 2.70 | 20 / 25 |
| 40/16 | 40 | 16 | 2.70 | 20 / 25 |
| 50/20 | 50 | 20 | 2.70 | 20 / 25 |
| 65/25 | 65 | 25 | 2.90 | 20 / 25 |
| 75/30 | 75 | 30 | 2.90 | 20 / 25 |
| 85/35 | 85 | 35 | 2.90 | 20 / 25 |
| 100/40 | 100 | 40 | 2.90 | 20 / 25 |
| 120/50 | 120 | 50 | 2.90 | 20 / 25 |
| 150/60 | 150 | 60 | 3.00 | 20 / 25 |
| 175/75 | 175 | 75 | 3.00 | 20 / 25 |
| Product selection | ||
| Busbar size(mm) | Single layer bus bar | Two layers bus bar |
| 20×3, 25×3 | Φ25/10 | Φ30/12 |
| 30×3, 30×4 | Φ30/12 | Φ40/16 |
| 30×10, 40×4 | Φ40/16 | Φ50/20 |
| 40×10, 50×5, 50×6 | Φ50/20 | Φ65/25 (Φ75/30) |
| 50×8, 50×10, 60×6, 60×8 | Φ65/25 (Φ75/30) | Φ75/30(Φ85/35) |
| 60×10, 80×6, 80×8, 80×10 | Φ75/30(Φ85/35) | Φ100/40(Φ120/50) |
| 100×8, 100×10, 100×12 | Φ100/40(Φ120/50) | Φ120/50 |
| 150×12, 150×15 | Φ150/60 | Φ175/75 |

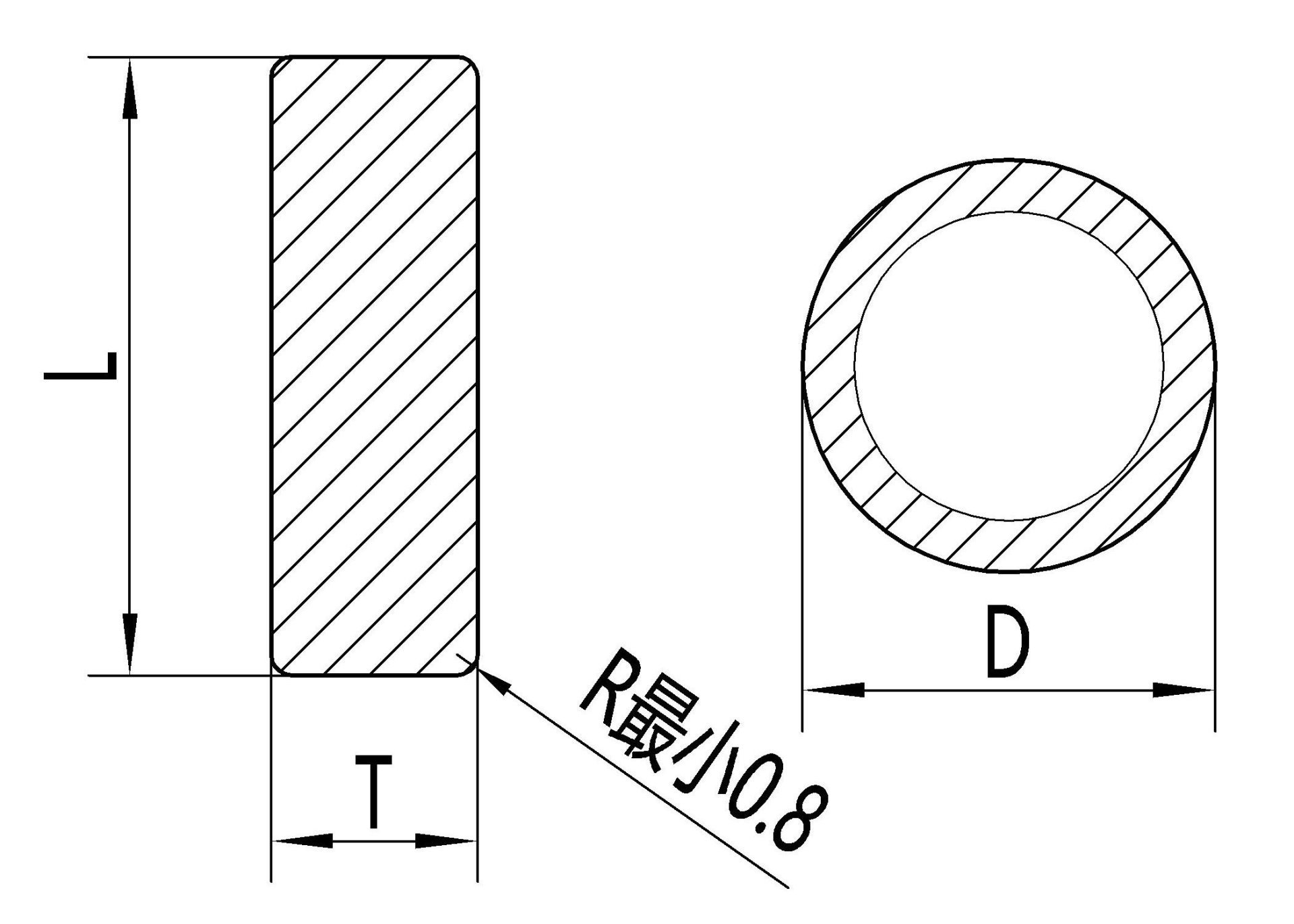

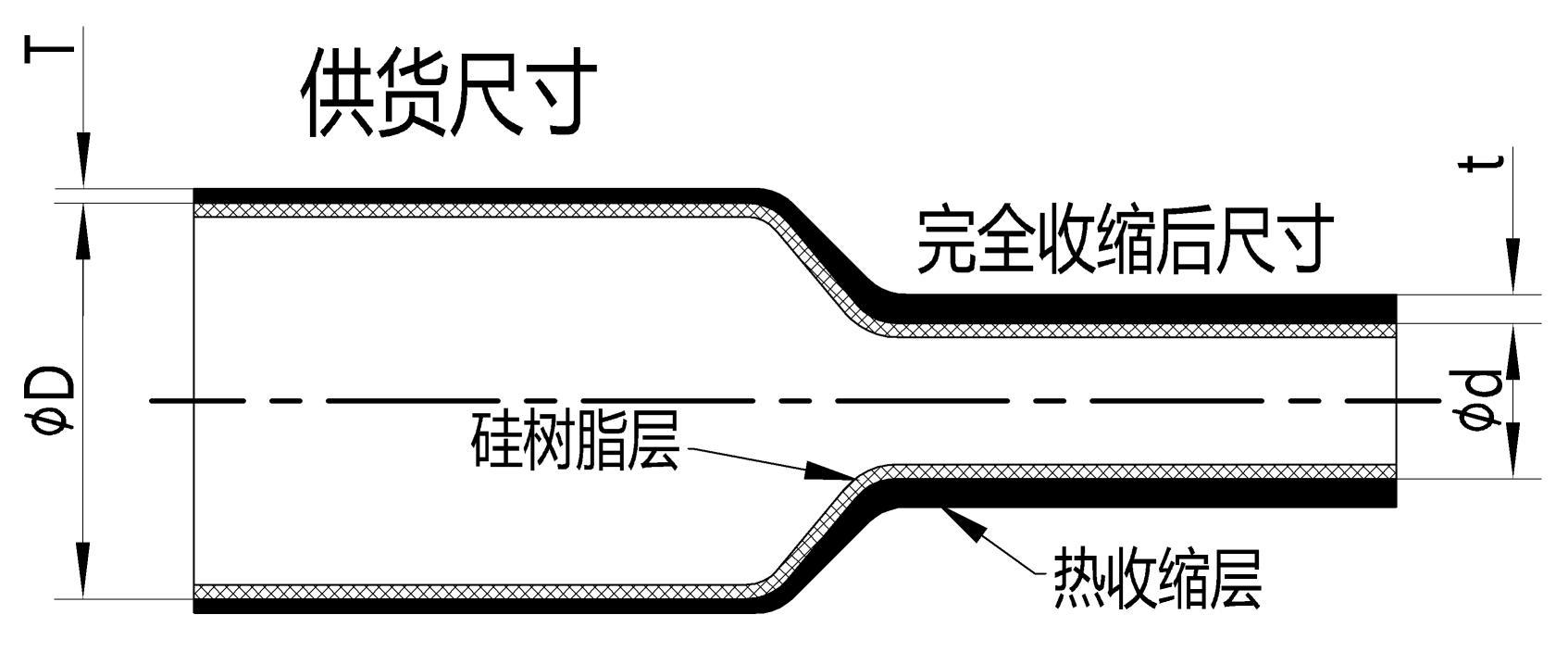

Product diagram
Keyword:
S1-10 Flame Retardant Busbar Insulation Heat Shrinkable sleeve
