ERC wire and cable quick patch

Retail price
0.0
Market price
0.0
Number of views:
1006
Product serial number
Category
Others
Quantity
-
+
Stock:
0
1
Detail
Size specification

Features:

Good sealing effect;           the memory effect of curl makes repairing quick and easy;

Low product specifications, wide range of repair;   halogen-free, environmentally friendly; products are RoHS compliant.

Repair cable instructions:

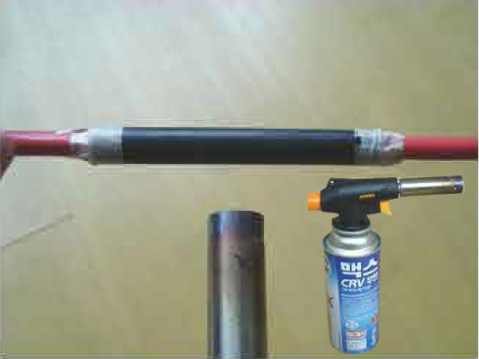

It is best to use a flame below 800 °C and master the flame distance. Generally, the front end of the flame is about 20mm away from the patch.

Do not overheat the ends, it is easy to cause flanging

When using, it is necessary to overlap 15mm or more, preferably 20mm.

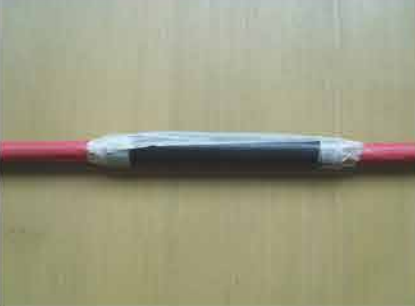

Before heating, it is necessary to wind the tape with high temperature resistance (resistant to 1300 °C) in the middle gap and both ends.

After the heating is finished, the tape can be pulled off. No water cooling required, but need to use a strap

Repair wire usage instructions:

It is best to use a flame below 800 °C, and master the flame distance, generally the front end of the flame is about 20mm away from the patch;

Do not overheat the two ends, it is easy to produce flanging.

When used, it needs to be overlapped by 10mm or more, preferably 15mm.

Before heating, it is necessary to wind the tape with high temperature resistance (tolerance of 1300 °C) in the middle gap and both ends.

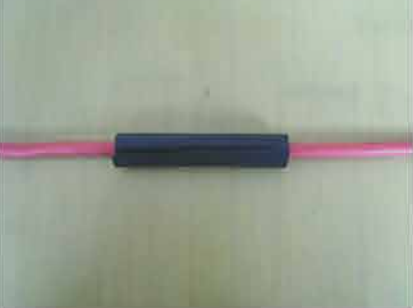

After the heating is finished, the tape can be pulled off. No need for water cooling, pinch with gloves to ensure a firm, seamless

Product comparison:

Chinese Patent No.: 201110230694.4 / 201110230695.9.

application:

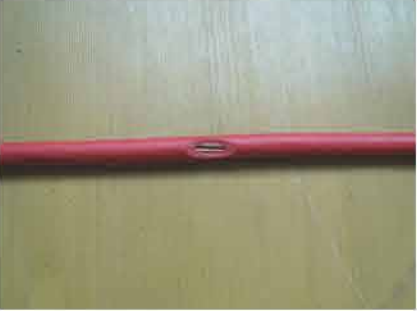

Suitable for quick repair of damaged wires, cables, sealed, insulated and irregular power products.

Standard sizes



Product choice

1KV 4-core, 5-core cable

Cable outer diameter

Product length*

Overlap length

UPM ERC

Cable square (mm2)

(mm)

(mm)

(mm)

ERC-50

1.5~2.5

11~13

100/200/300

≥15

ERC-75

4~10

13~20

100/200/300

≥15

ERC-100

16~25

20~27

100/200/300

≥15

ERC-150

35~70

27~40

100/200/300

≥15

ERC-200

95~150

40~55

100/200/300

≥15

ERC-300

185~300

55~80

300/400

≥15

* When using the above ERC series products, it is necessary to use a strap to fix the repair piece.



Product length

Number of straps

Product length

Number of straps

(mm)

The number of

(mm)

The number of

100

2

300

4

200

3

400

6


Suitable for wires

Product choice

Product length (mm)

ERW-60

50

100

150
