  • Name: C106 Semi-Conductive/Insulation/Elastomeric Insulation Tri-Layer Heat Shrink Tube
  • Colour: Standard color : Black/Red/Red.
  • Temperature: Operating temperature: -55~105℃;Shrink temperature: 135-150℃.
    • Icon:
    •  Features:
         Cross-linked heavy wall tubing ;      Tri-layer design with high recovery forces;
         Co-Extrusion technology;      Voltage class: 10-35 KV ;
         Eliminates partial discharge;      Halogen free ,RoHs Compliant;
         Enable the joint to follow the thermally induced dimensional changes of cable insulation.
       Typical application:
         Ideal for insulation of power cable joint up to 42KV .

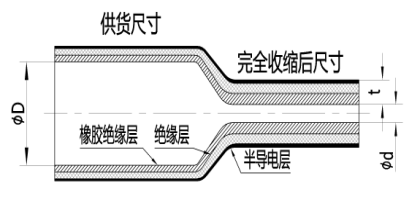

      Dimensions:
      Reference As supplied(mm) After recovered(mm) Standard length
      UPM C106 ID min. ID max. WT nom. m
      35/13 35 13 11.0 1 or 1.22
      45/17 45 17 12.0 1 or 1.22
      50/21 50 21 12.7 1 or 1.22
      63/26 63 26 13.5 1 or 1.22
      75/34 75 34 13.5 1 or 1.22
      85/34 85 34 13.5 1 or 1.22
      95/42 95 42 14.2 1 or 1.22
      110/52 110 52 14.2 1 or 1.22
      125/62 125 62 15.0 1 or 1.22
       ID=Internal Diameter  WT=wall thickness

      Parameters

      Property Test method          Values
      Inner layer

      Physical

      Tensile strength

      ASTM D2671

       ≥6 MPa
        Breakdown elongation ASTM D2671 ≥600%
         Aging (136℃ /168hrs) Tensile strength ASTM D2671  ≥4.2 MPa
      Breakdown elongation ASTM D2671 ≥420%
        Thermal endurance IEC 216 105 ℃
        Water absorption (23℃/336hrs) ASTM D570 ≤0.5%
        Density ASTM D2671 0.95~1.05
        Low temperature flexibility(-55℃/4hrs) ASTM D2671 No cracking.
        Hardness (Shore D) ASTM D2671 ≤ 30 HD

      Electrical

      Dielectric strength(in insulation oil)

      ASTM D 2671

      ≥15KV/mm
        Volume resistivity ASTM D 2671 ≥1014 Ω.cm

      Middle layer

      Physical

      Tensile strength

      ASTM D2671

      ≥12 MPa
        Breakdown elongation ASTM D2671 ≥400%
         Aging(136℃ /168hrs) Tensile strength ASTM D2671  ≥12 MPa
      Breakdown elongation ASTM D2671 ≥350%
        Thermal endurance IEC 216 105 ℃
        Water absorption (23℃/336hrs) ASTM D570 ≤0.5%
        Density ASTM D2671 1.05~1.15
        Low temperature flexibility(-40℃/4hrs) ASTM D2671 No cracking.
        Heat shock (200℃/30mins) ASTM D2671 No cracking.
        Hardness (Shore D) ASTM D2671 ≥ 35 HD

      Electrical

      Dielectric strength(in insulation oil)

      ASTM D 2671

      ≥15KV/mm
        Volume resistivity ASTM D 2671  ≥1013 Ω.cm

      Outer layer

      Physical

      Tensile strength

      ASTM D2671

      ≥20 MPa
        Breakdown elongation ASTM D2671 ≥350%
         Aging (158℃ /168hrs) Tensile strength ASTM D2671 ≥16 MPa
      Breakdown elongation ASTM D2671 ≥300%
        Thermal endurance IEC 216 135 ℃
        Water absorption (23℃/336hrs) ASTM D570  ≤0.5%
        Density ASTM D2671 1.05~1.10
        Heat shock (250℃/30mins) ASTM D2671 No cracking.No drop, no flow
        Low temperature flexibility(-40℃/4hrs) ASTM D2671 No cracking.
        Hardness (Shore D) ASTM D2671 ≥ 55 HD

      Electrical

      Volume resistivity

      ASTM D 2671

      ≤104 Ω.cm

      Inner layer & Middle layer & Outer layer



      Halogen free

      IEC 61249-2-21

      Cl : 900ppm max.
        Br : 900ppm max.
        Total (Cl + Br) : 1500ppm max
