S6-T Polyurethane Elastomer Heat Shrink Tubing

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
Introduction
A soft radiation cross-linked polyurethane elastomer heat-shrinkable tube is used for the connection, insulation and protection of various wires and cables in military equipment that require wear-resistant and solvent-resistant environments, end treatment or insulation protection or coating of wiring, electronic Component wrapping, etc.



Features
Operating temperature: -55~125
Minimum full shrinkage temperature: 150
Shrink ratio: 2:1
GJB 7274-2011 compliant
Excellent wear resistance, lubricating oil resistance, hydraulic oil performance
soft, flame retardant



Technical data
Property Test Method Value
Density GJB 7274-2011 ≤1.50g/cm3
Longitudinal change rate GJB 7274-2011 -10%~10%
Restricted shrinkage(200/30m) GJB 7274-2011 No cracks on the surface
Water absorption (23/24小时) GJB 7274-2011 ≤2.0%
Tensile Strength GJB 7274-2011 ≥11.7MPa
Breakdown elongation GJB 7274-2011 ≥250%
Heat shock(200/4h) GJB 7274-2011 No cracks, no flow, no dripping on the surface
h(150/168h)
Tensile Strength
Breakdown elongation
GJB 7281-2011
≥10.4MPa
≥200%
Dielectric strength GJB 7274-2011 ≥11.9kV/mm
Insulation withstand voltage(AC2500V·1min.) GJB 7274-2011 Not broken down
Volume resistivity GJB 7274-2011 ≥1.0×109Ω·cm
Liquid resistance(23/24h)
Tensile Strength
Breakdown elongation
GJB 7274-2011
≥70% of the initial value
≥100%
flame retardancy GJB 7274-2011 The continuous burning time does not exceed 60S after leaving the fire
Copper corrosion(135/16h) GJB 7274-2011 No dents or blackening of the copper surface
low temperature flexibility(-55/4h) GJB 7274-2011 No cracks on the surface
High and low temperature impact(-55/120) GJB 7274-2011 Tensile Strength≥70% of the initial value
Breakdown elongation≥200%
salt spray GJB 150.11 Tensile Strength≥70% of the initial value
Breakdown elongation≥200%
damp heat GJB 150.9 Tensile Strength≥70% of the initial value
Breakdown elongation≥200%
mold GJB 150.10 The degree of mold growth is not worse than grade 1

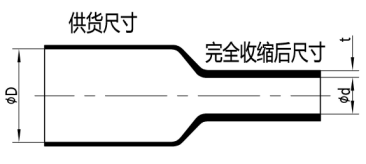

Dimension
Size As Supplied(mm) After shrink (mm) Wire mass(Max.) Standard length
S6-T Inner DiameterMin. Inner Diameter (Max.) Wall thickness g/m m
Regular wall thickness S6-T
1.6/0.85 1.6 0.85 0.40±0.08 3.1  200
2.4/1.2 2.4 1.2 0.51±0.08 5.9  200
3.2/1.6 3.2 1.6 0.76±0.15 9.6  200
4.8/2.4 4.8 2.4 0.84±0.15 14.7  200
6.4/3.2 6.4 3.2 0.89±0.15 19.3  200
9.5/4.8 9.5 4.8 1.02±0.20 31.5  122
12.7/6.4 12.7 6.4 1.22±0.20 42.5  122
15.9/7.9 15.9 7.9 1.32±0.28 57.5  61
19.1/9.5 19.1 9.5 1.45±0.28 80.1  61
22.2/11.1 22.2 11.1 1.55±0.28 98.5  61
25.4/12.7 25.4 12.7 1.78±0.28 120.0  61
31.8/15.9 31.8 15.9 2.20±0.41 172.5  30.4
38.1/19.1 38.1 19.1 2.41±0.41 243.0  30.4
50.8/25.4 50.8 25.4 2.79±0.41 342.0  30.4
thin wall S6-TTW
1.6/0.85 1.6 0.85 0.40±0.08 3.1  200
2.4/1.2 2.4 1.2 0.51±0.08 5.9  200
3.2/1.6 3.2 1.6 0.51±0.08 7.0  200
4.8/2.4 4.8 2.4 0.51±0.08 9.6  200
6.4/3.2 6.4 3.2 0.64±0.08 15.6  200
9.5/4.8 9.5 4.8 0.64±0.08 22.2  122
12.7/6.4 12.7 6.4 0.64±0.08 27.0  122
15.9/7.9 15.9 7.9 0.76±0.15 37.6  61
19.1/9.5 19.1 9.5 0.76±0.15 47.2  61
22.2/11.1 22.2 11.1 0.89±0.15 60.2  61
25.4/12.7 25.4 12.7 0.89±0.15 67.6  61
31.8/15.9 31.8 15.9 1.02±0.20 90.4  30.4
38.1/19.1 38.1 19.1 1.02±0.20 115.4  30.4
50.8/25.4 50.8 25.4 1.14±0.20 157.9  30.4



Ordering instructions: please order by "model-specification-color", such as S6-T-9.5/4.8-0
Color: Black (-0) should be used



Product diagram
