S10 Soft Viton Heat Shrinkable Tube

Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Heat shrink products in military and aerospace fields
Quantity
-
+
Stock:
0
1
Detail
Size specification
Introduction
A soft irradiated cross-linked fluororubber heat-shrinkable tube is used for the connection, insulation, protection, end treatment or stress relief of various wires and cables in military equipment requiring high temperature resistance, oil resistance and chemical solvent resistance environment. Insulation protection or coating of wiring, coating of electronic components, etc.



Features
Operating temperature: -55~200 ℃
Minimum full shrinkage temperature: 175 ℃
Shrink ratio: 2:1
GJB 7273-2011 compliant
Excellent high temperature resistance, solvent resistance, oil resistance, chemical corrosion resistance
Soft, Flame Retardant, Wear Resistant



Technical data
Property Test Method Value
Longitudinal change rate GJB 7273-2011 -20%~20%
Restricted shrinkage(200℃/30m) GJB 7273-2011 No cracks on the surface
Water absorption (23℃/24h) GJB 7273-2011 ≤0.5%
Tensile Strength GJB 7273-2011 ≥11.0MPa
Breakdown elongation GJB 7273-2011 ≥250%
Heat shock(300℃/4h) GJB 7273-2011 No cracks, no flow, no dripping on the surface
Aging(250℃/168h)
Tensile Strength
Breakdown elongation		 GJB 7273-2011
≥11.0MPa
≥200%
Dielectric strength GJB 7273-2011 ≥7.9kV/mm
Insulation withstand voltage(AC2500V·1min.) GJB 7273-2011 Not broken down
Volume resistivity GJB 7273-2011 ≥1.0×109Ω·cm
Liquid resistance(23℃/24h)
Tensile Strength
Breakdown elongation		 GJB 7273-2011
≥11.0MPa
≥250%
flame retardancy GJB 7273-2011 The continuous burning time does not exceed 60S after leaving the fire
Copper corrosion(175℃/16h) GJB 7273-2011 No dents or blackening of the copper surface
low temperature flexibility(-55℃/4h) GJB 7273-2011 No cracks on the surface
High and low temperature impact(-55℃/250℃) GJB 7273-2011 Tensile Strength≥11.0MPa
Breakdown elongation≥200%
salt spray GJB 150.11 Tensile Strength≥11.0MPa
Breakdown elongation≥200%
damp heat GJB 150.9 Tensile Strength≥11.0MPa
Breakdown elongation≥200%
mold GJB 150.10 The degree of mold growth is not worse than grade 1

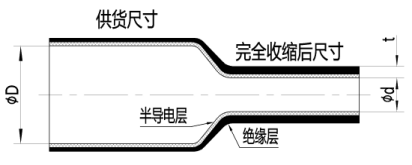

Dimension
Size As Supplied(mm) After shrink (mm) Wire mass(Max.) Standard length
S10 Inner Diameter（Min.） Inner Diameter (Max.) Wall thickness g/m m
2.4/1.2 2.4 1.2 0.60±0.10 9.8 100
3.2/1.6 3.2 1.6 0.76±0.13 11.8 100
4.8/2.4 4.8 2.4 0.89±0.18 17.5 100
6.4/3.2 6.4 3.2 0.89±0.18 20.6 61
9.5/4.8 9.5 4.8 0.89±0.18 33.7 61
12.7/6.4 12.7 6.4 0.89±0.18 60.7 61
15.9/7.9 15.9 7.9 1.07±0.21 76 61
19.1/9.5 19.1 9.5 1.07±0.21 88.8 61
22.2/11.1 22.2 11.1 1.25±0.30 140 61
25.4/12.7 25.4 12.7 1.25±0.30 151 61
38.1/19.1 38.1 19.1 1.40±0.38 252.3 30.5
50.8/25.4 50.8 25.4 1.65±0.43 300.5 30.5



Ordering instructions: please order by "model-specification-color", such as S10-9.5/4.8-0
Color: Black (-0) should be used
Cross reference
Raychem/TE: RW-200/RW-200-E



Color: Black (-0) should be used
