S3(h) 厚壁阻燃热缩管

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
Technical Data
Property Test Method Value
Tensile Strength ASTM D2671 ≥ 10.4 MPa
Breakdown elongation ASTM D2671 ≥ 350%
Aging(158/168hrs)
Tensile Strength
Breakdown elongation
ASTM D 2671
≥ 10.4 MPa
≥ 300%

Water absorption(23/24hrs) ASTM D 570 ≤ 0.5%
Low temperature flexibility(-55/4hrs) ASTM D 2671 No cracks
Heat shock(200/4hrs) ASTM D 2671 No drips, no flow, no cracks
Dielectric strength ASTM D 2671 ≥ 15 kV/mm
Volume resistivity ASTM D 2671 ≥ 1×1014Ω.cm
Flame retardant UL224 VW-1

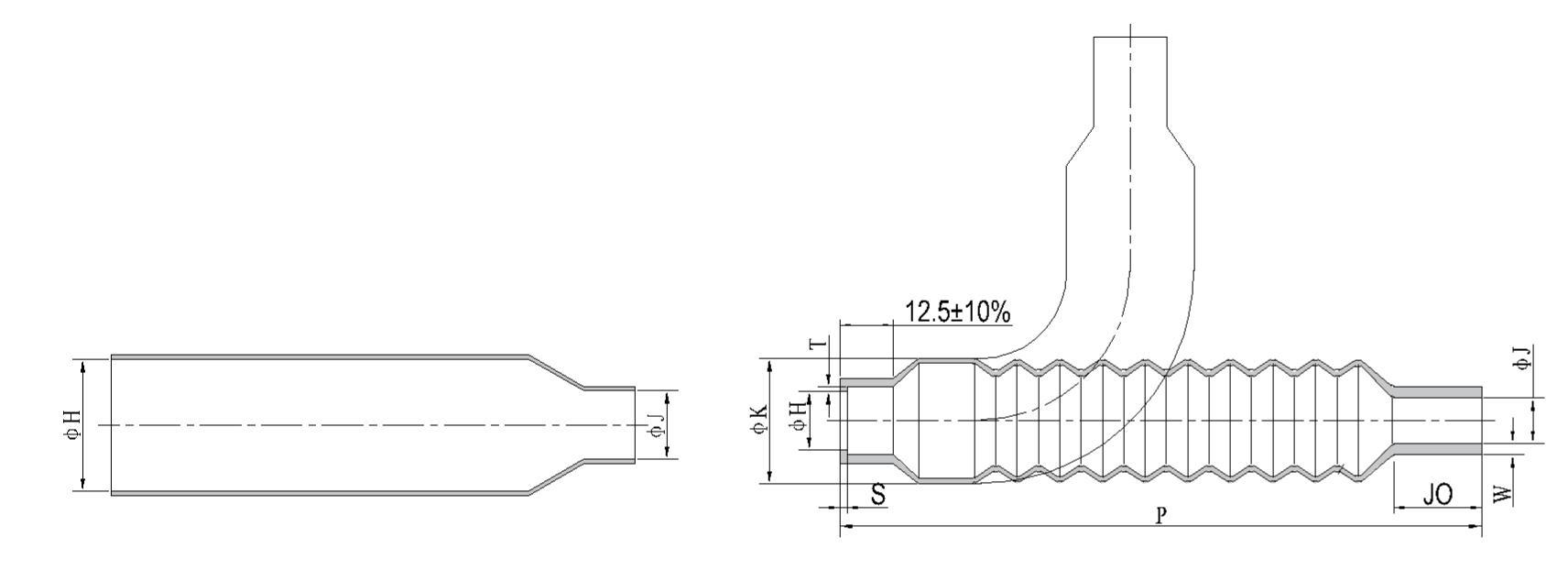

Dimension
Size As supplied(mm) After shrink(mm) Supplied length
S3(h)  Diameter(Min.) Diameter(Max.) W T(nomal) m/pc
9/3 9 3 2.5with glue 1.0/1.22
13/4 12 4 2.8with glue 1.0/1.22
16/5 16 5 3.0with glue 1.0/1.22
19/6 19 6 2.6 1.0/1.22
22/6 22 6 2.6 1.0/1.22
25/8 25 8 2.8 1.0/1.22
28/9 28 6 3.0  1.0/1.22
33/8 33 8 3.0  1.0/1.22
35/12 35 12 3.5 1.0/1.22
40/12 40 12 3.5 1.0/1.22
45/13 45 13 3.6 1.0/1.22
55/16 54 16 3.6 1.0/1.22
65/19 65 19 3.6 1.0/1.22
75/22 75 22 3.6 1.0/1.22
85/25 85 25 3.6 1.0/1.22
95/25 95 25 3.6 1.0/1.22
105/30 105 30 3.6 1.0/1.22
115/34 115 34 3.7 1.0/1.22
130/36 130 36 3.8 1.0/1.22
140/42 140 42 3.8 1.0/1.22
160/50 160 50 4.0  1.0/1.22
175/58 175 58 4.0  1.0/1.22
200/65 200 65 4.2  1.0/1.22
230/75 230 75 4.4  1.0/1.22
260/85 260 85 4.8  1.0/1.22
