C101 Non-tracking heat shrink tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | |||
| Cross-linked polyolefin material, with or without glue on the inner wall. Excellent resistance to electric carbon trace and creepage corrosion resistance. It is suitable for insulation protection of indoor and outdoor power cable terminals or intermediate joints. | |||
| Fearures | |||
| Operating temperature：-55~105℃ | |||
| Minimum full shrinkage temperature：125 ℃ | |||
| Voltage level：6~36 kV | |||
| Single wall or double wall with glue optional | |||
| Halogen-free, environmentally friendly, flame retardant | |||
| Shrink ratio：2:1 & 3:1 | |||
| Color: red, other colors can be customized |
| Technical Data | |||
| Property | Test method | Values | |
| Tensile Strength | ASTM D 2671 | ≥8 MPa | |
| Breakdown elongation | ASTM D 2671 | ≥200% | |
| Aging(150℃/168hrs) Tensile Strength Breakdown elongation |
ASTM D 2671 | ≥ 8 MPa ≥ 100% |
|
| Secant modulus (2%) | ASTM D 2671 | ≤ 170 MPa | |
| Water absorption(23℃/24hrs) | ASTM D 570 | ≤ 0.5% | |
| Low temperature flexibility(-40℃/4hrs) | ASTM D 2671 | No cracks | |
| Heat shock(200℃/4hrs) | ASTM D 2671 | No dripping no flow | |
| Breakdown strength | ASTM D 2671 | ≥ 15 kV/mm | |
| Volume resistivity | ASTM D 2671 | ≥ 1×1012Ω.cm | |
| Tracking and erosion resistance | ASTM D 2303 | After four stages of 2.5kV/1h, 2.75kV/1h, 3.0kV/1h, 3.25kV/20 minutes, there is no penetration or continuous burning | |
| Flame retardant | ASTM D2863 | Oxygen Index OI ≥ 25 | |
| Color stability | IEC 60684-3 | Stable color, no change |

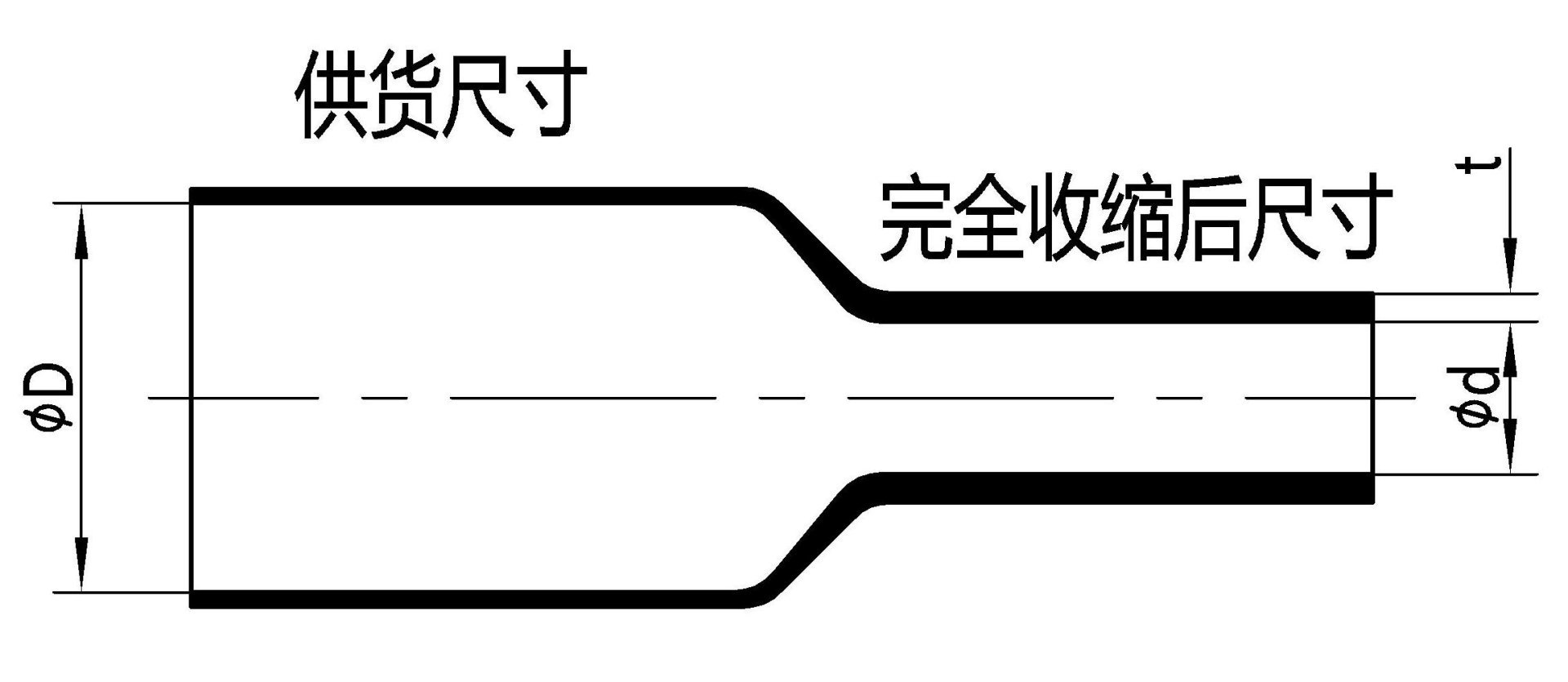

| Dimension | ||||
| Size | As supplied(mm) | After shrink(mm) | Standard Length | |
| UPM C101 | Inner diameter（Min.） | Inner diameter（Max.） | Wall thickness（common） | m/pc |
| 19/6 | 19 | 6 | 2.5 | 1.22 or 15 |
| 30/10 | 30 | 10 | 3.0 | 1.22 or 15 |
| 38/12 | 38 | 12 | 3.0 | 1.22 or 15 |
| 40/16 | 40 | 16 | 3.0 | 1.22 or 15 |
| 45/18 | 45 | 18 | 3.0 | 1.22 or 15 |
| 55/21 | 55 | 21 | 3.0 | 1.22 or 15 |
| 65/28 | 65 | 28 | 3.0 | 1.22 or 15 |
| 75/36 | 75 | 36 | 3.0 | 1.22 |
| 85/40 | 85 | 40 | 3.2 | 1.22 |
| 100/40 | 100 | 40 | 3.6 | 1.22 |
| 130/50 | 130 | 50 | 3.7 | 1.22 |
