S1-35 Flame Retardant Busbar Insulation Heat Shrinkable Sleeve

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
Introduction
Thick-walled heat-shrinkable tube, made of environmentally friendly flame-retardant polyolefin material, can be used in 6~36kV power switch cabinets to provide insulation enhancement and protection against flashover or accidental induced discharge. Particularly suitable for switch cabinets where space is limited, it can be used for round and rectangular copper or aluminum busbars.



Features
Operating temperature: -40~105
Voltage level: 6~36kV
Halogen-free and environmentally friendly, RoHS compliant
Minimum full shrinkage temperature: 125
Shrink ratio: 2:12.5:1
Standard Colors : Red, Yellow, Green



Technical Data
Property Test Method Value
Density ASTM D2671 1.1~1.3 g/cm3
Heat resistance IEC 216 ≥105
Tensile Strength ASTM D2671 ≥10 MPa
Breakdown elongation ASTM D2671 ≥300%
Aging (136/168h)
Tensile Strength
Breakdown elongation
ASTM D2671
≥8 MPa
≥200%
Aging (100/3000h
Breakdown elongation
IEC 60684-2
≥175%
After corrosion by special solvent(23/168h)
Tensile Strength
Breakdown elongation
IEC 60684-2
≥8MPa
≥200%
Water absorption (23/336h) ASTM D570 ≤1.0%
Low temperature flexibility (-40/4h) ASTM D2671 No cracks
Heat shock (200/4h) ASTM D2671 No drips, no flow, no cracks
Dielectric strength ASTM D2671 ≥16 kV/mm
Volume resistivity ASTM D2671 ≥1.0×1013 Ω·cm
Anti-tracking ASTM D2863 Oxygen Index OI≥27
Color stability (resistance to sunlight/ultraviolet rays) IEC 60684-3-283 Stable color, no change
Copper corrosion(150/168h) IEC 60684-3-283 Pass



Dimension
Size As supplied(mm) After shrink (mm) Standard length
S1-35  Inner diameterMin. Inner diameterMax. Wall thickness (conventional) m/roll
25/10 25 10 3.50 15
30/12 30 12 3.60 15
40/16 40 16 3.60 15
50/20 50 20 3.60 15
65/25 65 25 3.60 15
75/30 75 30 3.70 15
85/35 85 35 3.70 15
100/40 100 40 3.70 15
120/50 120 50 3.80 15
150/60 150 60 3.80 15
175/75 175 75 3.80 15



Product selection
Busbar size(mm) Single layer bus bar Two layers bus bar
20×3, 25×3 Φ25/10 Φ30/12
30×3, 30×4 Φ30/12 Φ40/16
30×10, 40×4 Φ40/16 Φ50/20
40×10, 50×5, 50×6 Φ50/20 Φ65/25 (Φ75/30)
50×8, 50×10, 60×6, 60×8 Φ65/25 (Φ75/30) Φ75/30(Φ85/35)
60×10, 80×6, 80×8, 80×10 Φ75/30(Φ85/35) Φ100/40(Φ120/50)
100×8, 100×10, 100×12 Φ100/40(Φ120/50) Φ120/50
150×12, 150×15 Φ150/60 Φ175/75

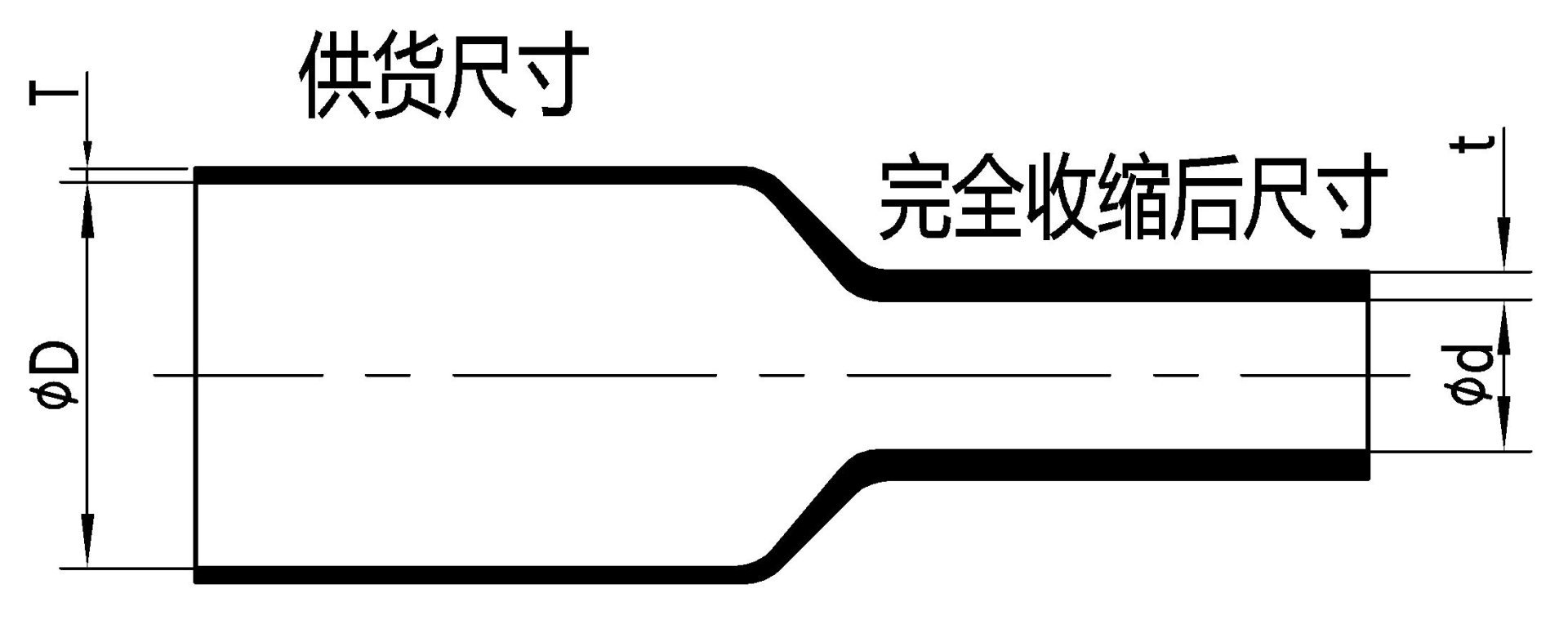

Product diagram
