S1-A Overhead lined over for insulation

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
Introduction
It is suitable for improving insulation and preventing short circuit of overhead wires of various voltage levels; strengthening the three-phase insulation protection of medium and high voltage lines to the transition line of the main transformer station; used for the oil switch on the column and the lead part of the urban public transformer. Easy and fast installation, built-in creepage extender, increase creepage distance and improve insulation performance. Excellent weather resistance, UV resistance and mechanical damage resistance.



Features
Operating temperature: -40~105
Voltage level: 380V~110 kV
Environmentally friendly, RoHS compliant
Standard Colors : Red, Green, Yellow, Black
Standard packing: 20 meters/roll



Technical Data
Property Test Method Value
Tensile Strength ASTM D2671 ≥12 MPa
Breakdown elongation ASTM D2671 ≥400%
Aging(90/168h)
Tensile Strength
Breakdown elongation
ASTM D2671
≥10 MPa
≥300%

Water absorption (23/24h) ASTM D570 ≤0.5%
Low temperature flexibility (-40/4h) ASTM D2671 No cracks
Dielectric strength ASTM D2671 ≥20 kV/mm
Volume resistivity ASTM D2671 ≥1.0×1013 Ω·cm
Dielectric constant ASTM D2671 ≤3.0
Anti-tracking ASTM D2303 2.5 kV1h or
2.75 kV
1h

flame retardancy ASTM D2863 Oxygen Index OI ≥27



Dimension
Size Applicable voltage Applicable conductor cross-sectional area Maximum conductor diameter(mm)
Ø14A 380V~10kV 70mm2 and below 14
Ø18A 380V~10kV 95mm2 18
Ø20A 380V~10kV 120~150mm2 20
Ø28A 380V~10kV 185~300mm2 28
Ø38A 380V~10kV 400~800mm2 38
Ø14B 35kV~110kV 70mm2 and below 14
Ø18B 35kV~110kV 95mm2 18
Ø20B 35kV~110kV 120~150mm2 20
Ø28B 35kV~110kV 185~300mm2 28
Ø38B 35kV~110kV 400~800mm2 38

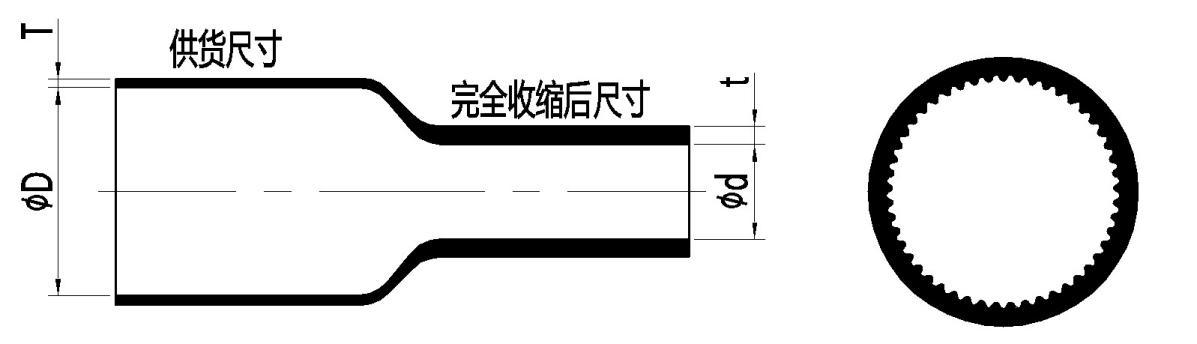

Product diagram









Keyword:
S1-A Overhead lined over for insulation
Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table
