GM-T Transparent tube bus insulation heat shrinkable tube
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||
| A heat-shrinkable tube made of pure PE resin material, without other fillers or additives, with uniform and stable electrical performance, used in 1~36kV tube bus or other insulation protection applications. | ||||
| Features | ||||
| Operating temperature: -40~105 ℃ | ||||
| Voltage level: 1~36kV | ||||
| Halogen-free and environmentally friendly, RoHS compliant | ||||
| Minimum full shrinkage temperature: 125 ℃ | ||||
| Shrink ratio: 2:1 | ||||
| Standard color: transparent | ||||
| Pure PE resin material |
| Technical Data | ||||
| Property | Test method | Values | ||
| Tensile Strength | ASTM D2671 | ≥14 MPa | ||
| Breakdown elongation | ASTM D2671 | ≥400% | ||
| Aging(136℃/168h) Tensile Strength Breakdown elongation |
ASTM D2671 | ≥10.8 MPa ≥200% |
||
| Water absorption (23℃/24h) | ASTM D570 | ≤0.2% | ||
| Low temperature flexibility (-40℃/4h) | ASTM D2671 | No cracks | ||
| Heat shock(150℃/4h) | ASTM D2671 | No drips, no flow | ||
| Dielectric strength | ASTM D2671 | ≥20 kV/mm | ||
| Volume resistivity | ASTM D2671 | ≥1.0×1014 Ω·cm |

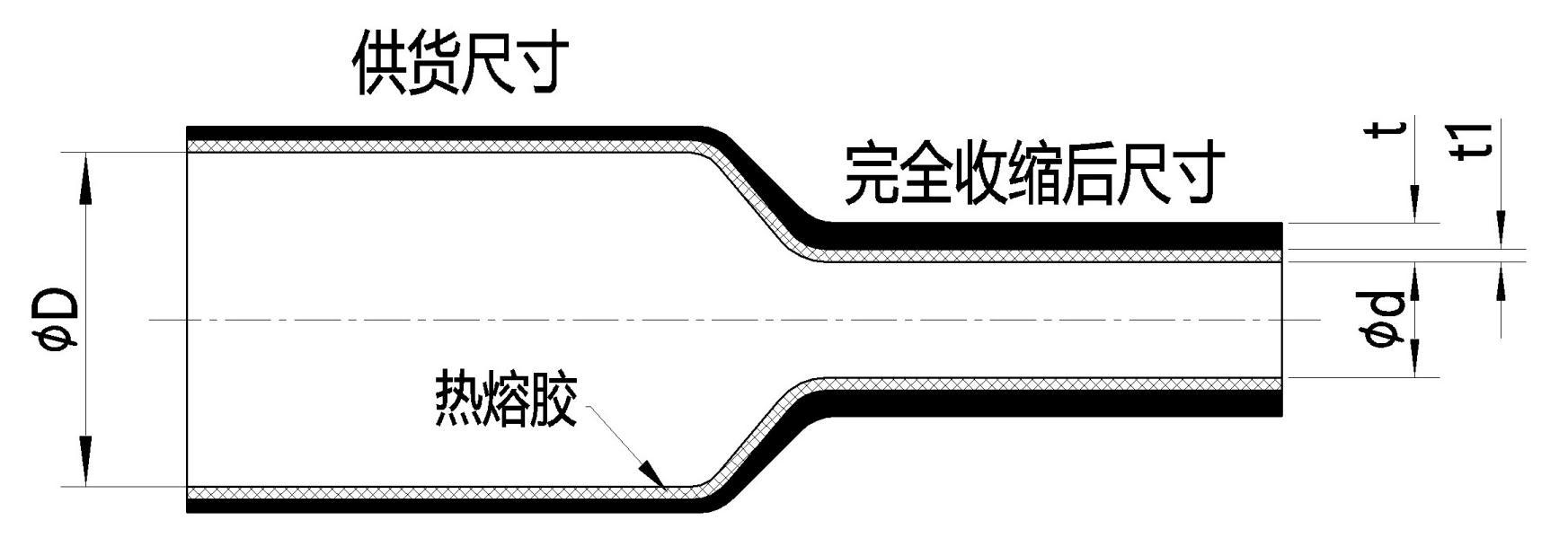

| Dimesion | ||||
| Size | As supplied(mm) | After shrink (mm) | Standard length | |
| GM-T | Inner diameter（Min.） | Inner diameter（Max.） | Wall thickness（common） | m/roll |
| 80/40 | 80 | 40 | 2.2 | 6~24 |
| 100/50 | 100 | 51 | 2.2 | 6~24 |
| 120/60 | 120 | 60 | 2.2 | 6~24 |
| 150/75 | 150 | 75 | 2.4 | 6~24 |
| 180/90 | 180 | 90 | 2.4 | 6~24 |
