WR-01N Environmental protection solder ring waterproof heat shrinkable middle connection terminal
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Heat Shrink Terminal Products
Quantity
-
+
Stock:
0
1
Detail
Size specification
| Introduction | ||||||||
| Cross-linked polyolefin material heat shrinkable tube, embedded lead-free environmentally friendly solder ring and hot melt glue ring. Transparent design, the wiring effect is visible; the color of the rubber ring is different and the size is easy to choose; no crimping tool is needed, and the tin ring is welded by heat. Used for wire connection, welding, insulation, and waterproof are completed at one time, and the installation is simple and convenient. | ||||||||
| Features | ||||||||
| Operating temperature: -55~125 ℃ | ||||||||
| Solder melting temperature：115℃ | ||||||||
| Complete melting temperature of solder：155℃ | ||||||||
| Shrink ratio: 2:1 | ||||||||
| Voltage level：600V | ||||||||
| Lead-free environmentally friendly solder ring |
| Technical Data | ||||
| Property | Test Method | Value | ||
| Tensile Strength | ASTM D2671 | ≥14MPa | ||
| Breakdown elongation | ASTM D2671 | ≥400% | ||
| Aging（150℃/168h） Tensile Strength Breakdown elongation |
ASTM D2671 |
≥10MPa ≥200% |
||
| Withstand voltage | ASTM D2671 | AC 1kV·1min No breakdown | ||
| Aging（150℃/168h） Withstand voltage |
ASTM D2671 |
AC 1kV·1min No breakdown，And not less than 50% before aging |
||
| Low temperature flexibility（-40℃/4h） | ASTM D2671 | No cracks | ||
| Heat shock（200℃/4h） | ASTM D2671 | No cracks | ||
| 2% secant modulus | ASTM D2671 | ≤250MPa | ||
| Volume resistivity | ASTM D2671 | ≥1.0×1014Ω·cm | ||
| Dimension | ||||||||
| Part Number | Size(mm) | Covered wire diameter(mm) | Wire size | Color | ||||
| Diameter | Length | B(min) | B&C(max) | C(min) | A.W.G | mm² | ||
| WR-01N-11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24 | 0.25-0.34 | White |
| WR-01N-12 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 | 0.5-1.0 | Red |
| WR-01N-13 | 4.7 | 40 | 2.3 | 4.7 | 2.0 | 16-14 | 1.5-2.5 | Blue |
| WR-01N-14 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10 | 4.0-6.0 | Yellow |

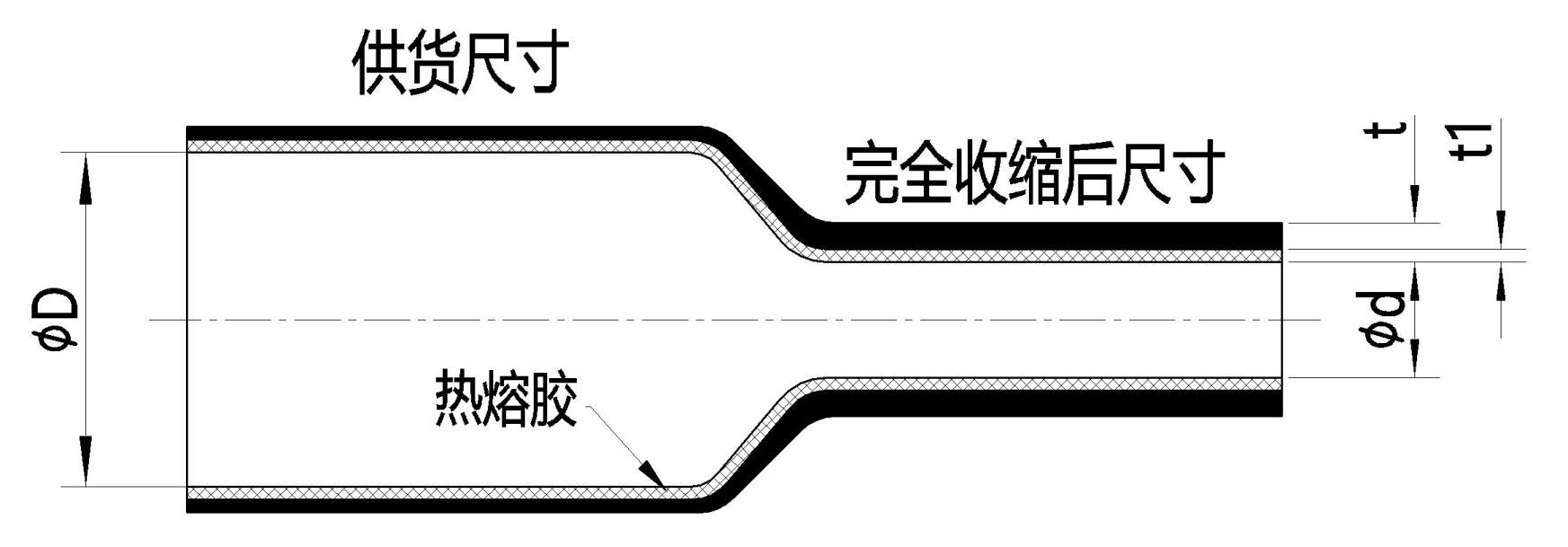

Product diagram
